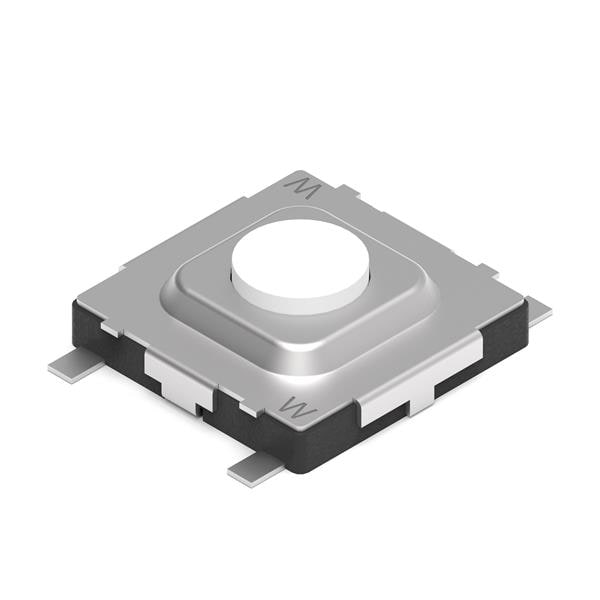

Wurth Elektronik 431151015826 ປຸ່ມກົດ SMT Tact Switch WS-TASV SMT Tact Switch 260g

Life: 200000 Cycle

Color: Black

Width: 5 mm

Height: 1.5 mm

Length: 5 mm

Travel: 0.25 mm

Actuator: Round

Features: Grounding Pin

Illuminated: Non-Illuminated

Stem Height: 0.3 mm

Unit Weight: 50 mg

Contact Form: SPST

Current Rating: 50 mA

Mounting Style: SMD/SMT

Actuator Length: 0.3 mm

Contact Plating: Silver

Ground Terminal: Yes

Operating Force: 260 gf

Switch Function: OFF - (ON)

Actuator Material: Liquid Crystal Polymer (LCP)

Termination Style: Solder Pad

Voltage Rating DC: 12 VDC

Mounting Direction: Straight

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
