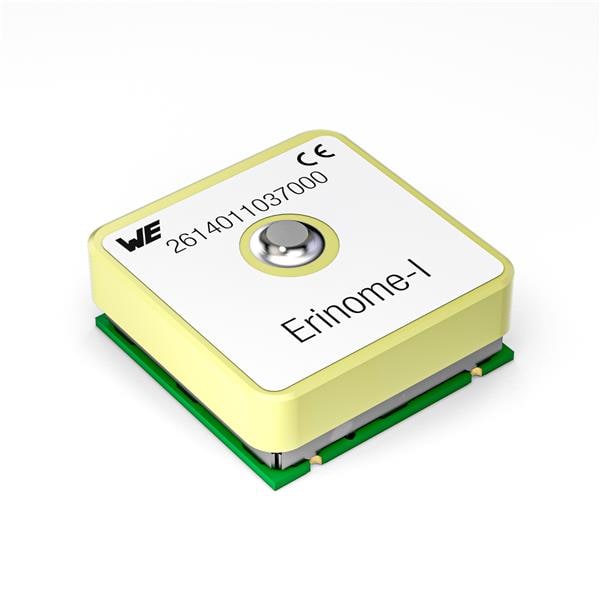

Wurth Elektronik 2614011037000 ໂມດູນ GPS WIRL-POSI Erinome-I GNSS ໂມດູນ GLONASS

Frequency: 1.56 GHz to 1.62 GHz

Dimensions: 18 mm x 18 mm x 6.4 mm

Interface Type: I2C, UART

Mounting Style: PCB Mount

Moisture Sensitive: Yes

Number of Channels: 52 Channel

Supply Voltage - Max: 4.5 V

Supply Voltage - Min: 2.6 V

Acquisition Sensitivity: - 148 dBm

Protocol - GPS, GLONASS: GPS, GNSS

Operating Supply Current: 55 mA

Operating Supply Voltage: 2.6 V to 4.5 V

Horizontal Position Accuracy: 2.5 m

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Time To First Fix - Cold Start: 28 s
