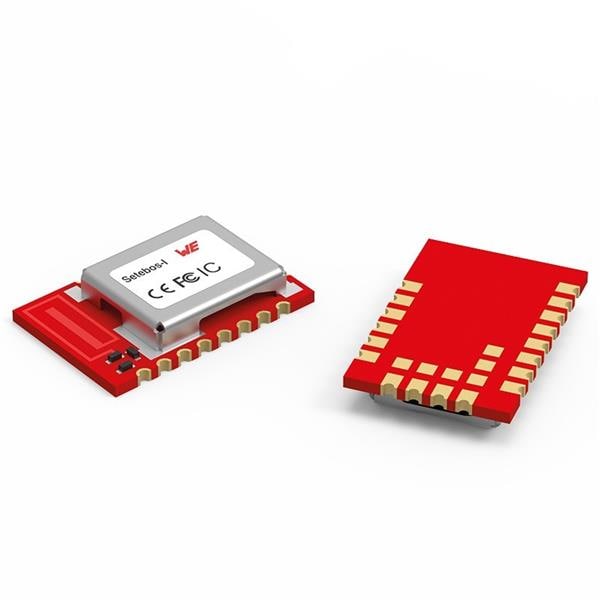

Wurth Elektronik 2611011024020 ມູດູນ Bluetooth WIRL-COMB Setebos-I ມູດູນລາດິໂອ 2.4GHz

Width: 8 mm

Height: 2 mm

Length: 12 mm

Protocol: BLE, Bluetooth 5.1

Data Rate: 2 Mb/s

Frequency: 2.44 GHz

Shielding: Unshielded

Dimensions: 12 mm x 8 mm x 2 mm

Output Power: 6 dBm

Interface Type: UART

Mounting Style: SMD/SMT

Frequency Range: 2.402 GHz to 2.48 GHz

Moisture Sensitive: Yes

Receiver Sensitivity: - 98 dBm, - 100 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Antenna Connector Type: RF

Operating Supply Voltage: 1.8 V to 3.6 V

Supply Current Receiving: 7.7 mA

Supply Current Transmitting: 18.9 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
