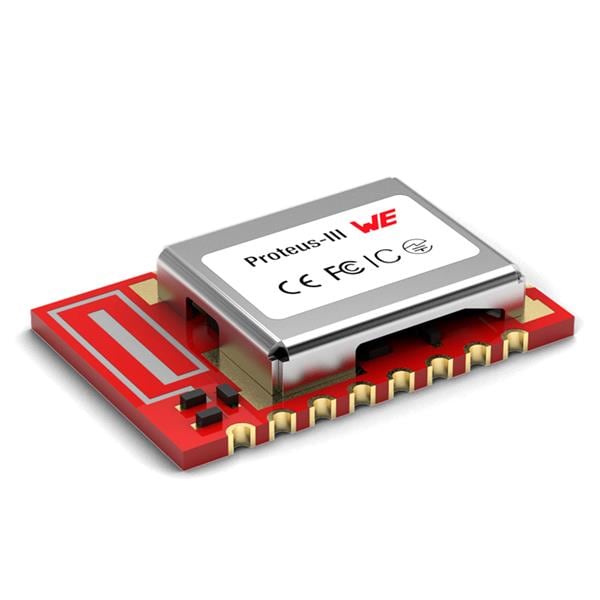

Wurth Elektronik 2611011024000 ມູດູນ Bluetooth WIRL-BTLE ProteusIII BLE 5.1 Module

Width: 8 mm

Height: 2 mm

Length: 12 mm

Protocol: BLE, Bluetooth 5.1

Data Rate: 2 Mb/s

Frequency: 2.44 GHz

Shielding: Unshielded

Dimensions: 12 mm x 8 mm x 2 mm

Memory Size: 1048 kB Flash

Sensitivity: - 92 dBm

Output Power: 6 dBm

Interface Type: UART

Mounting Style: SMD/SMT

Frequency Range: 2.402 GHz to 2.48 GHz

Moisture Sensitive: Yes

Receiver Sensitivity: - 92 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Antenna Connector Type: RF Pad and Internal Antenna

Operating Supply Voltage: 1.8 V to 3.6 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
