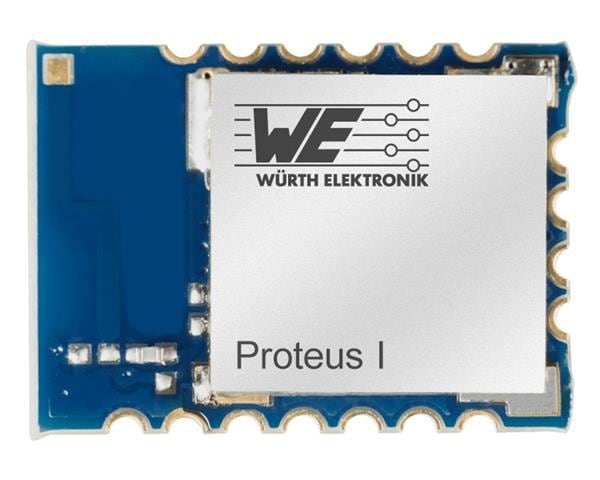

Wurth Elektronik 2608011124000 ອາເດັດເຕີ USB WIRL-BTLE Proteus-I 4.2 ມີກັບຜ້າ RF 50 Ohm

Core: ARM Cortex M4

Width: 8 mm

Height: 2 mm

Length: 11 mm

Protocol: BLE, Bluetooth 4.2

Data Rate: 1 Mb/s

Frequency: 2.44 GHz

Shielding: Unshielded

Dimensions: 11 mm x 8 mm x 2 mm

Memory Size: 512 kB

Sensitivity: - 96 dBm

Unit Weight: 220 mg

Output Power: 3 dBm

Interface Type: Serial

Mounting Style: SMD/SMT

Frequency Range: 2.402 GHz to 2.48 GHz

Moisture Sensitive: Yes

Receiver Sensitivity: - 96 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Antenna Connector Type: Integrated Antenna

Operating Supply Voltage: 1.8 V to 3.6 V

Supply Current Receiving: 7.5 mA

Supply Current Transmitting: 5.4 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
