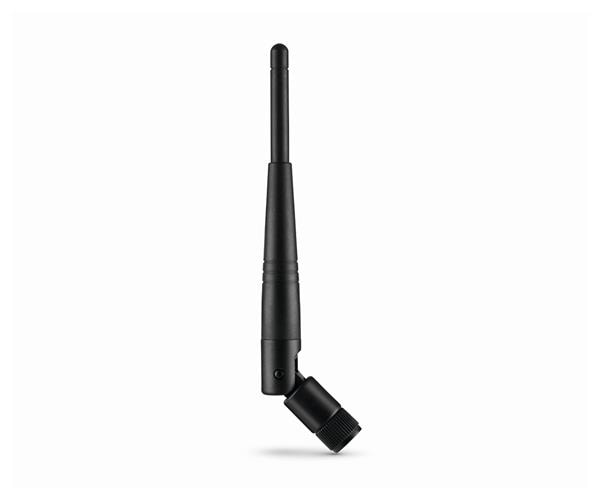

Wurth Elektronik 2600130021 ອະນຕີນາພາສິບ WIRL-ACCE Himalia 2.4GHz ຮອດ 2.5GHz

Gain: - 0.6 dBi

VSWR: 2:1

Style: Tilt/Swivel

Length: 83.1 mm

Diameter: 10 mm

Impedance: 50 Ohms

Application: Proprietary-International Applications

Unit Weight: 14.800 g

Polarization: Linear

Mounting Style: Panel Mount

Electrical Type: Dipole

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Whip

Ground Plane Size: 100 mm x 100 mm

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WLAN, WiFi, WiMAX

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
