Wuhan UHV-645 ເຄື່ອງວິເຄາະອາຍແກັສທີ່ລະລາຍນ້ຳມັນ

Network anti-control system: Internal CAN's way, with interface board design, It can be converted to network port output at will

Signal output bits: 24-bit

Communication interface: Network interface output(class 6 network cable connections)

Circuit design: ARM embedded design for easy wireless control, remote control and mobile app control

Temperature control system: Six-way independent temperature control

Temperature control: Room temperature - 450 ℃, liquid nitrogen refrigeration: - 80 ℃ - 450 ℃

Column box temperature control accuracy: ±0.02℃

Program heating up: 21 Stage 21 level, 0.1 ℃ / stage

Show module: Large-screen LCD

Display accuracy: 0.01 ℃

Lift rate of column and box: 0~80 ℃ / min (adjustment increment 0.1 ℃ / min) up to 120 ℃ / min

Temperature reprogrammed repeatability: ≤1%

TCD detector sensitivity: S value ≥ 10000mv.ml/mg (benzene) )up to 12000 mv.ml/mg (benzene)

Baseline noise: ≤10uv

Baseline Drift: ≤50uv/30min

Detection limit of FID detector: ≤5 x 10-12g/s(cetane)

Baseline noise: ≤2 x 10-14A

Baseline Drift: ≤1×10-13A/30min（After the instrument stabilizes for 2 hours）

Detection limit of ECD detector: ≤1.0 x 10-13g/s （r-666）

Baseline noise: ≤40uv

Baseline Drift: ≤100uv/30min

Detection limit of FPD detector: ≤1.4 x 10-12 g/s(p), ≤5×10-11g/s(S)

Baseline noise: ≤20uv

Baseline Drift: ≤50uv/30min

Extended: ≤6 external events can be added

Automation engineering: Can be increased: automatic ignition function, automatic sampler connection, four-way flow pressure display function, optional counter-control workstation to achieve counter-control

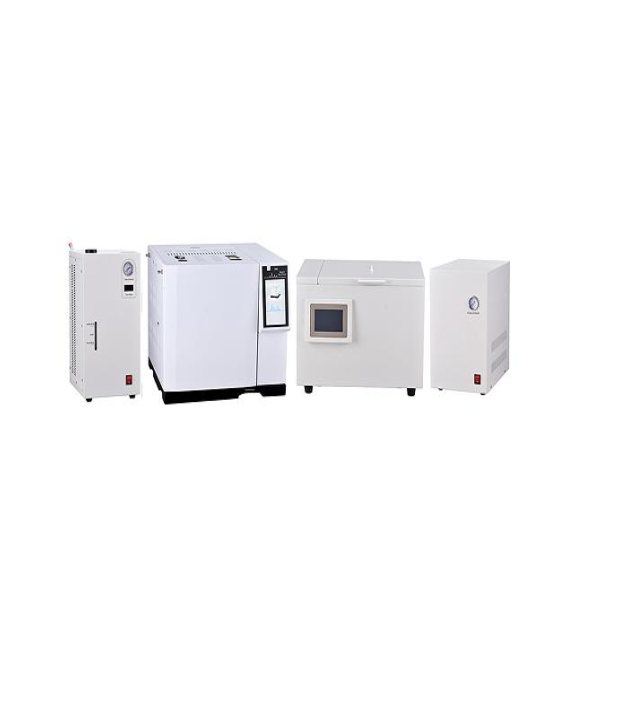

*Images are for illustrative purposes only
