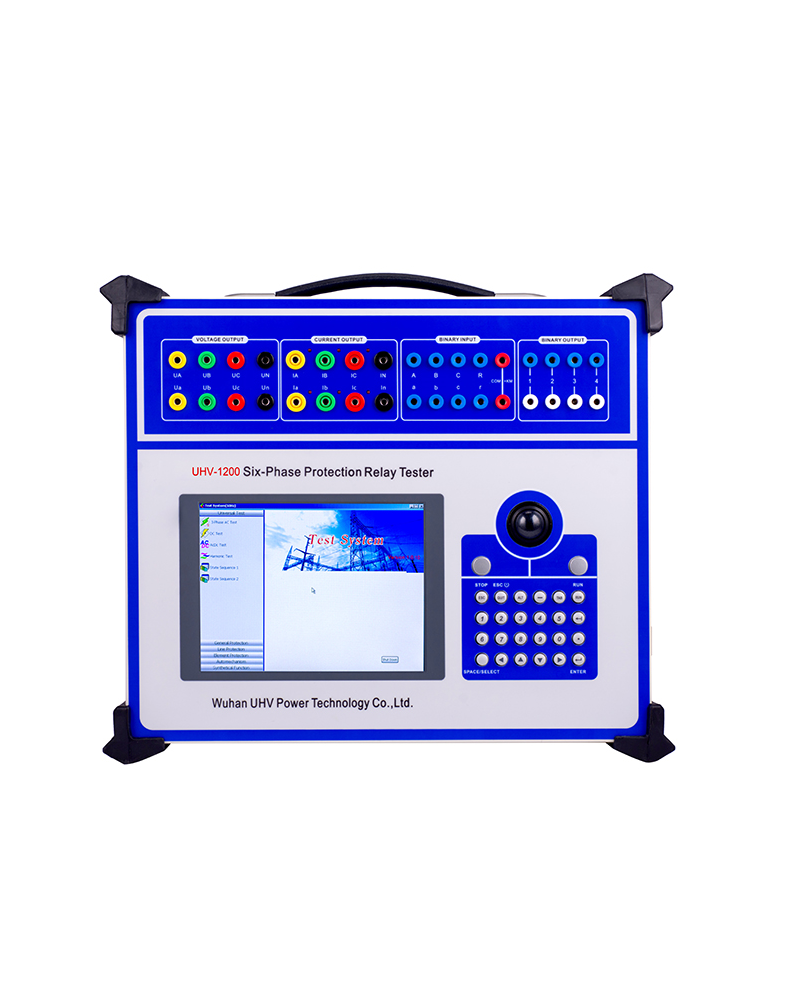

Wuhan UHV-1200 ການທົດສອບ Relay ການປົກປ້ອງ
Current channel number: Standard 6 phase
Voltage channel number: Standard 6 phase
Ac current output range: 30A/phase or 180A (six parallel)
Dc current output range: 10ADC/phase
Ac voltage output range: 120VAC/phase
Dc voltage output range: 160VDC/phase
Ac current output
6 phase current output per phase (effective value): 0 ~ 30A output precision 0.2
3 phase current output per phase (effective value): 0～60A
6 phase parallel current output (RMS): 0～180A
Phase current long-term allowable working value (RMS): 10A
Maximum output power of phase current: 450VA
T6 phase parallel current maximum output power): 1000VA
6 Allowable working time for maximum output of phase parallel current: 10s
Frequency range (fundamental): 0～1000Hz
Harmonic frequency: 0 to 20 times
Dc current output
Current output: 0 ~ ±10A/phase output accuracy 0.5 level
Maximum output load voltage: 20V
Ac voltage output
Phase voltage output (RMS): 0 ~ 120V output precision 0.2
Line voltage output (RMS): 0～240V
Phase voltage/line voltage output work: 80VA / 100VA
Frequency range (fundamental): 0～1000Hz
Harmonic frequency: 0 to 20 times
Dc voltage output
Phase voltage output amplitude: 0 ~ ±160V output accuracy 0.5
Line voltage output amplitude: 0～±320V
Phase voltage/line voltage output power: 70VA / 140VA
Switching value
8 switch inputs:
Null contact 1 ~ 20mA, 24V
Potential contact access "0" : 0 ~ +6V; 1: +11 V to +250 V
4 pairs of switching output: DC：220 V／0.2 A；AC：220 V／0.5 A
Time measuring range
Time measuring range: 0.1ms ～ 9999s
Measurement accuracy: 0＜0.1mS
