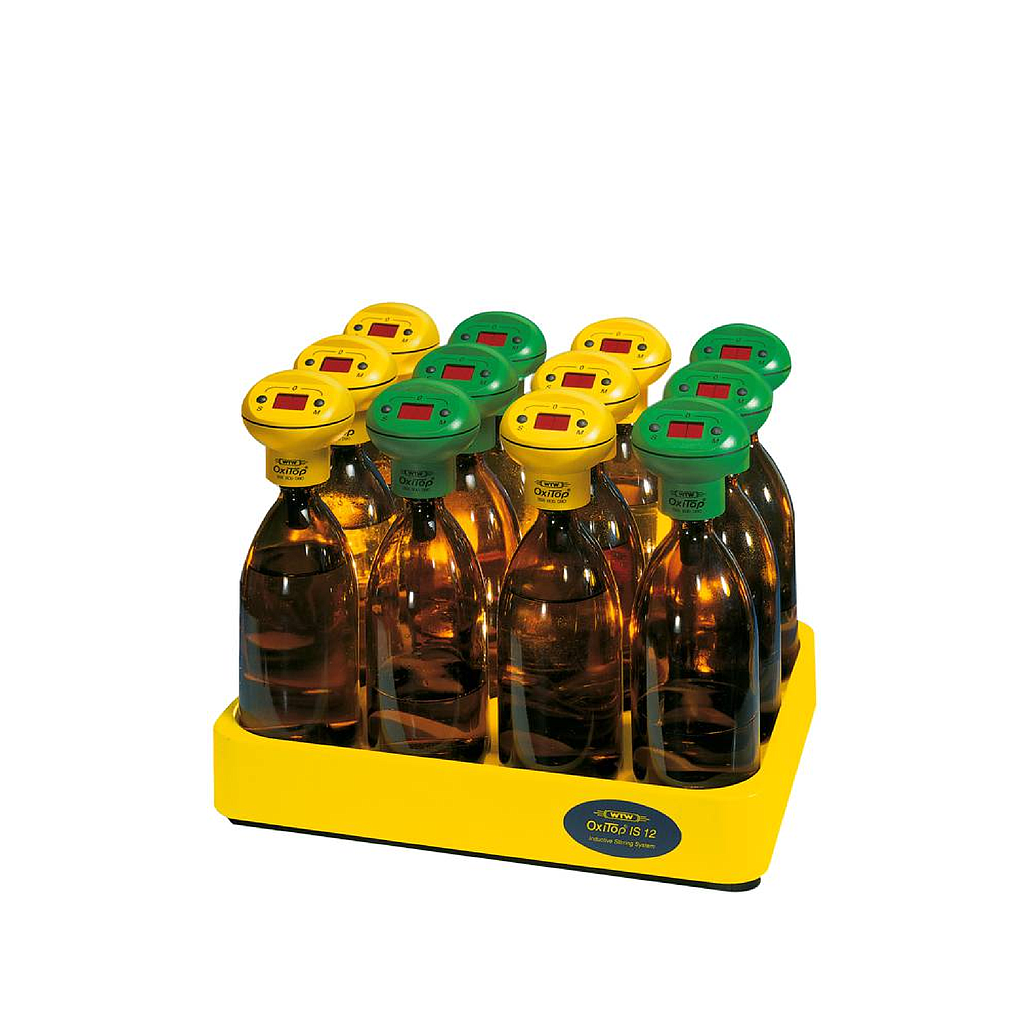

WTW OxiTop IS12 BOD self check measurement

Technical parameters of OxiTop transducers:

+ Measurement method: pressure measuring probe

+ Measuring range: 0-40 numbers, corresponding to the scale 0-40 / 80/200/400/800/2000 / 4000mg / l BOD. Number of impressions: 0-50 numbers, exactly 1 number (3.55hPa).

+ 10mm high LED display

+ Operating pressure range: 500-110OhPa

+ Memory for BOD every day

+ Using Lithium 2 X CR2430 battery (280mAh)

+ 25mA power consumption (when measuring)

+ Safety standards: 3 to IEC 1010, protection class IP54 to DIN 40050, EMC: EN61326 Class B, FCC Class A, climate standards: 2, VDI / VDE 3540

Stirrer specification from IS12:

+ Power supply: use 230V AC adapter, 50Hz 6 seats, stirring speed of 180-450 v / p programmed

+ Safety class: 3, IEC1010, IP30 protection level to DIN 40050, EMV: EN61326 dass B, FCC dass A, climate standard: 2, VDI / VDE 3540

+ Working environment: + 5- + 40 ° c .
