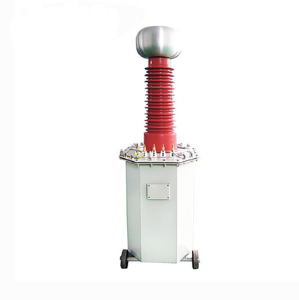

Wrindu YDJ-10kVA/100kV ໝໍ້ແປງໄຟແຮງດັນສູງ AC ໝໍ້ແປງໄຟແຮງດັນ (10kVA, 100kV)
Capacity kVA: 10
High voltage side:
Voltage kV: 100
Current mA: 100
Low voltage side:
Voltage V: 200
Current A: 50
Measurement ratio: 1000
Temperature rise℃ (30 mins): 10
Datasheet
Product features
1. Oil immersed test transformer has compact structure, stable and durable, and low price.
2. Small size, light weight, simple and intuitive wiring, easy to use.
3. Good insulation reliability and beautiful appearance.
Specification | Capacity kVA | high voltage side | low voltage side | Measurement ratio
| temperature rise℃ (30 mins) | ||
voltage kV | current mA | voltage V | current A | ||||
5/50 | 5 | 50 | 100 | 200 | 25 | 500 | 10 |
10/50 | 10 | 50 | 200 | 200 | 50 | 500 | 10 |
20/50 | 20 | 50 | 400 | 400 | 50 | 500 | 10 |
30/50 | 30 | 50 | 600 | 400 | 75 | 500 | 10 |
50/50 | 50 | 50 | 1000 | 400 | 125 | 500 | 10 |
5/100 | 5 | 100 | 50 | 200 | 25 | 1000 | 10 |
10/100 | 10 | 100 | 100 | 200 | 50 | 1000 | 10 |
20/100 | 20 | 100 | 200 | 400 | 50 | 1000 | 10 |
30/100 | 30 | 100 | 300 | 400 | 75 | 1000 | 10 |
50/100 | 50 | 100 | 500 | 400 | 125 | 1000 | 10 |
20/150 | 20 | 150 | 133 | 400 | 50 | 1500 | 10 |
30/150 | 30 | 150 | 200 | 400 | 75 | 1500 | 10 |
50/150 | 50 | 150 | 333 | 400 | 125 | 1500 | 10 |
50/200 | 50 | 200 | 250 | 400 | 125 | 1000 | 10 |
50/300 | 50 | 300 | 170 | 400 | 125 | 3000 | 10 |
Note: can be customized according to the user, non-standard products, parameters are not in the scope of the table.
