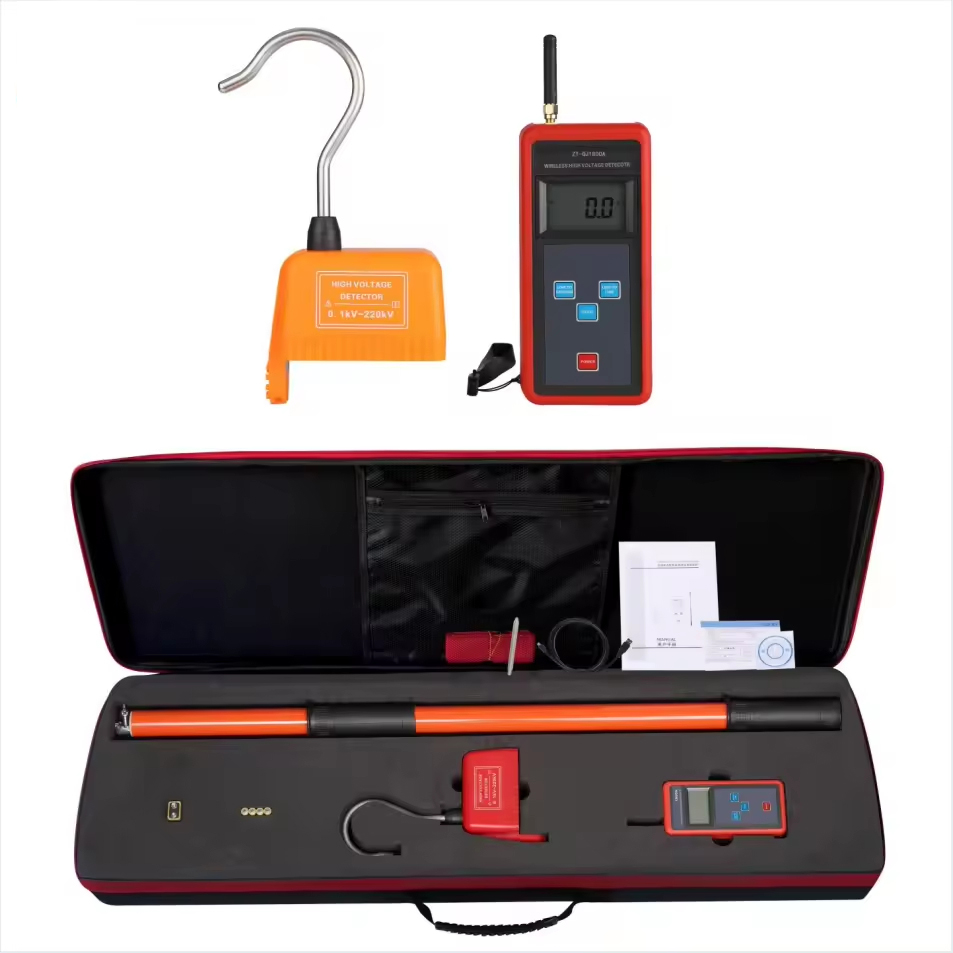

Wrindu TAG7000A ກ້ອງສ່ອງໄຟຟ້າແຮງດັນສູງໄຮ້ສາຍ (Electricity test voltage range: 380V～220KV)

Function: Wireless high voltage electricity test, high voltage voltage and induced voltage test

Power supply:

- Receiver: DC6V, 4 AA alkaline batteries

- Detector: Zinc-manganese dry battery 6F22, 9V

Electricity test voltage range: 380V～220KV

Voltage level display: 380V, 6.6KV, 10KV, 35KV, 66KV, 110KV, 220KV

Probing hook caliber: Φ50mm

Probe length: 110mm

Wireless frequency: 433MHz

LCD size: 47mm×28.5mm

Power indicator: The detector has a green power indicator light

Display rate: 2 times/second

Data storage: 99 groups

LCD backlight: With backlight

Automatic shut-down: after about 15 minutes of power on

Rated current

Detector: 75mA max; Receiver: 35mA max

Communication Interface: USB

Instrument quality: 660g (including battery); total mass of packaging and insulating rod: about 5.6Kg

Instrument size: Receiver: 78mm×165mm×42mm; detector 300mm×273mm×85mm

Insulation rod length: Maximum diameter Φ38mm; length: 850mm in contracted state; 3600mm in extended state

Insulation test

- Both ends of the insulating rod after stretching: AC 220KV/rms

- Receiver and detector: AC3700V/rms

Working temperature and humidity: -10℃～40℃; ≤80%rh

Storage temperature and humidity: -10℃～60℃; ≤70%rh
