1. Test object: various types of vacuum switch tubes.
2. Detection method: the new excitation coil is used to measure the vacuum tube without disassembly.
3. Scope of application: the instrument is a multi-purpose machine, which can measure various types of vacuum magnetic switch.
4. Detection range: 10-5 ~ 10-1 Pa
5. Measurement accuracy: 10-5～10-4 Pa ，15%
10-4～10-3 Pa ， 15%
10-3～10-2 Pa ， 10%
10-2～10-1 Pa ， 10%
6. Opening distance of switch tube during vacuum test: normal opening distance.
7. Operating environment: - 20 ℃～ 40 ℃
8. Main engine weight: 12 kg
9. Overall dimension: 420 mm × 320 mm × 280 mm
Product features:

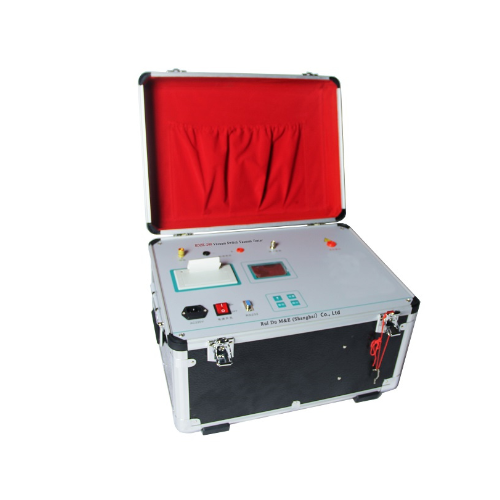

1. Interrupter Vacuity Tester can measure the vacuum degree of various types of vacuum switch interrupter quantitatively;
2. There is no need to dismantle the vacuum switch in field measurement;
3. The test results are accurate and reliable;
4. LCD screen, more simple and convenient operation;
5. Vacuum Switch Vacuum Tester can save, print and view the test data;
6. The vacuum tester of vacuum switch is light weight and easy to carry.
