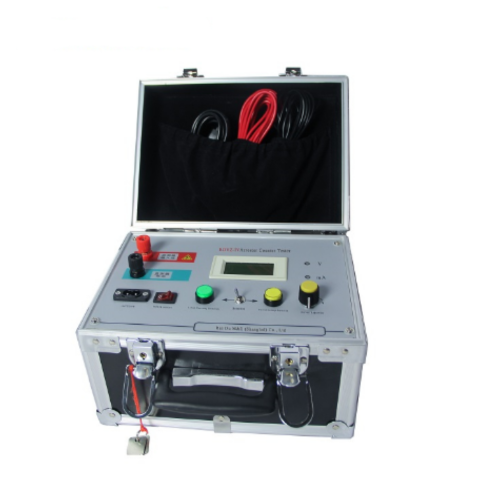

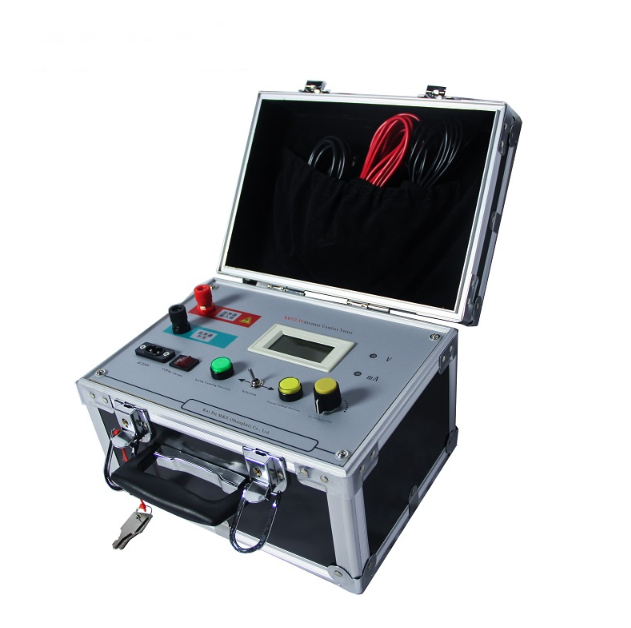

Wrindu RDYZ-IV Arrester Counter Tester (1ma-5ma)

1. Output voltage: DC600V ± 5%

2. Output current: AC 1ma-5ma (maximum, load less than 500 Ω) ± 3%

3. Interval time: ≥ 30s

4. Power supply: AC220 V ± 10% 50 Hz ± 2%

5. Impulse current: ≥ 100A (8 / 20 μ s)

6. Volume: 260mm × 190mm × 175mm

7. Weight: 4kg

Product features:

1. The lightening arrester discharge tester can not only check the number of lightning strokes, but also check the leakage current (maximum value).

2. The Discharge Counter Detector is in small size, light weight and easy to carry.
