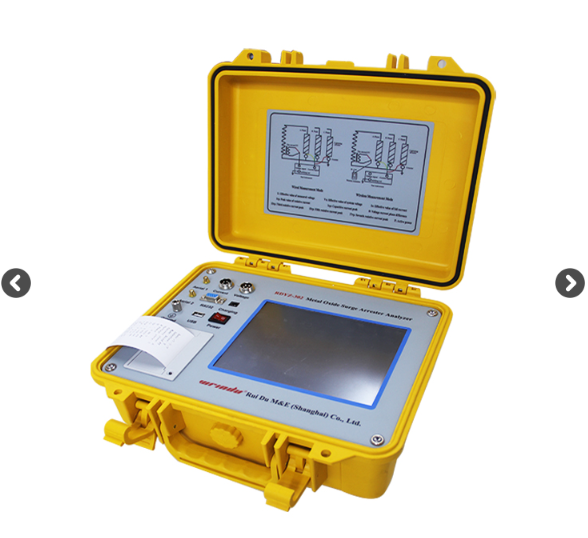

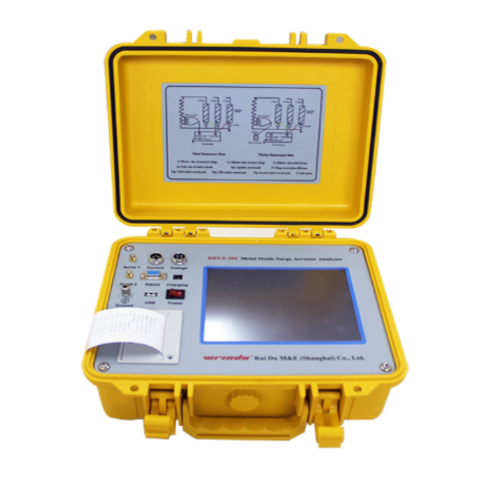

Wrindu RDYZ-302 ໂລຫະສັງກະສີ Oxide Lightening Arrester (0 ~ 50 mA)

1. Measuring range: 0 ~ 50 mA

2. Measurement accuracy

- Wired mode: fundamental: ± (reading × 2% + 2 words), harmonic: ± (reading × 10% + 5 words)

- Wireless mode: fundamental: ± (reading × 5% + 5 words), harmonic: ± (reading × 10% + 10 words)

3. Resolution: 0.001 mA

4. Measurement parameters:

- Full current waveform and fundamental peak value of leakage current.

- The fundamental peak value and the 3rd, 5th and 7th peak value of the resistive component of leakage current.

- Capacitive current fundamental peak value, full voltage, full current phase angle difference.

- Effective value of voltage.

- Power consumption of lightning arrester.

5. Voltage signal input: 30 ~ 250V

6. Maximum wireless transmission distance: 400m (sight distance)

7. Ambient temperature: - 10°C ~ 40°C

8. Ambient humidity: < 90% RH

Product features:

Fully automatic instrument, one wiring can measure three-phase data at the same time, or single-phase data separately.

It has the function of HARMONIC ANALYSIS and can accurately analyze the content of fundamental wave and 3rd, 5th and 7th harmonics.

Anti-interference function to ensure accurate and reliable data.

Voltage phase selection function. The voltage signal can be connected to any phase A, B and C.

Angle compensation function (when the voltage signal is 220V).

8.0-inch color touch LCD screen can display three-phase data and waveform at the same time.

AC / DC dual-purpose, built-in high-capacity lithium-ion battery, one charge can work continuously for about 6 hours.

There are three measurement methods: wired, wireless and no Pt, which support the signal acquisition of 220V maintenance power supply.

RS232 serial communication; USB interface

Wireless data transmission eliminates the tedious work of long-distance wiring of voltage measurement lines and reduces labor intensity;

Humanized menu design, friendly man-machine interface, simple operation, and the switching function of Chinese and English interface;

Storage function: the instrument can save 200 groups of test data, and the saved data can be exported by USB flash disk;

Small size, light weight, easy to carry, suitable for field operation.
