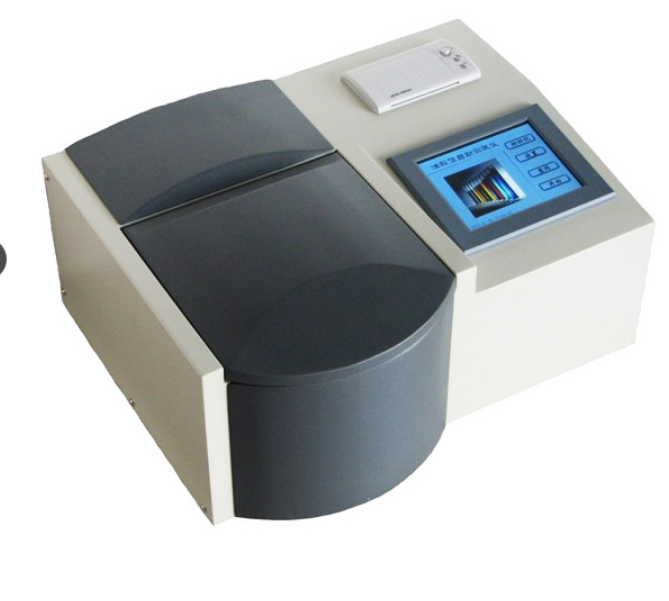

Wrindu RDSZ-3006 Insulation Oil Dielectric Loss ແລະເຄື່ອງທົດສອບຄວາມຕ້ານທານປະລິມານ (0.002～0.900mgKOH/g)

Product features

1. Six cup integrated design, suitable for testing the oleic acid value of transformer oil and steam turbine;

2. The Transformer Insulation oil Acid Value Tester can automatically add extractant, neutralize titration, judge the end point, calculate acid value, save data and print out;

3. Full English resistive touch screen, bright and elegant color, accurate parameter input response, stable and reliable display performance;

4. The automatic calibration function of the standard acid can eliminate the system error to the greatest extent and ensure the accuracy of the measurement results;

5. The design structure of the case is simple and reasonable, the volume is small and exquisite, and the appearance is elegant and generous;

Product specifications and technical parameters

1. Test range: 0.002～0.900mgKOH/g;

2. Minimum resolution: 0.001mgKOH/g

3. Repeatability: ≤ 0.005mgKOH / g

4. Measurement accuracy:

        i.The acid value is ± 0.005mgkoh/g between 0.002 and 0.100mgKOH/g;

       ii. The acid value between 0.100 and 0.900mgkoh/g is 5% of the indicated value;

5. Ambient temperature: 10～40 ℃

6. Relative humidity: ≤ 85%

7. Working power supply: AC220V ± 10%
