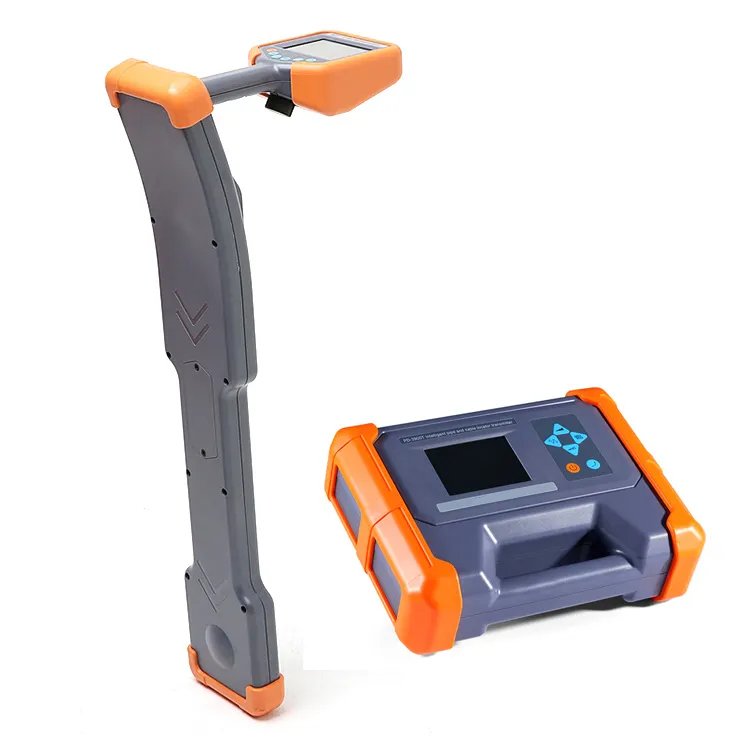

Wrindu RDPD-4950 ເຄື່ອງກວດຈັບທໍ່ໃຕ້ດິນອັດສະລິຍະ (640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz)

(1)  Transmitter

Output mode: direct connection mode, clamp coupling mode, radiation mode

Output frequency: 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz

Output power: 15W Max, 10 levels adjustable

Impedance matching: full automatic.

Over voltage and over current protection: full automatic.

Human-machine interface: 320×240 LCD.

Power: Built-in Lithium battery group, nominal 7.4V, > 6AH

External dimensions: 280mm×220mm×90mm.

Weight: 2.3 kg

Operating conditions: temperature:-25℃ ~ 60℃, humidity <90%RH, altitude <4500m

(2) Receiver

Receiver mode: direct connection mode, clamp coupling mode, radiation mode

Detection mode: wide peak, narrow peak, valley value, historical curve, frequency spectrum

Active frequency: 640Hz, 1280Hz, 8kHz, 33kHz, 82kHz, 197kHz.

Passive frequency: 50/60Hz power frequency, 4 ~ 24kHz radio frequency.

Human-machine interface: 320×240 LCD, sunlight readable

Built-in lithium ion battery pack, nominal 7.4V, > 3Ah.

External dimensions: 680mm×120mm×277mm.

Weight: 2.0 kg

Operating conditions: temperature:-25℃ ~ 60℃, humidity <90%RH, altitude <4500m
