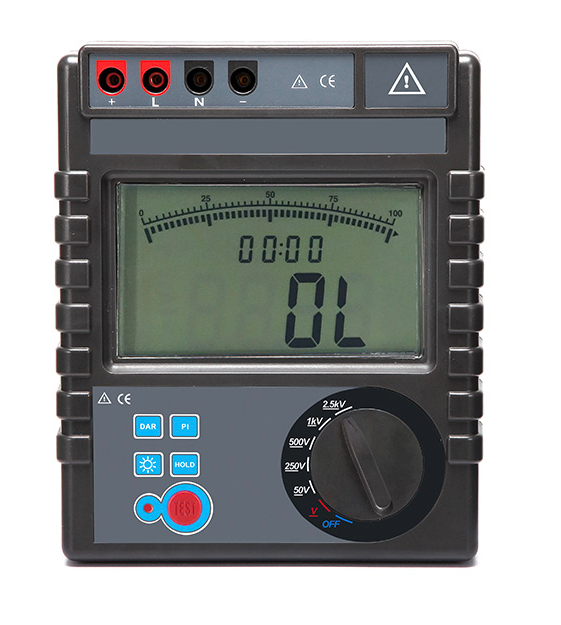

Wrindu RDIR3480A ເຄື່ອງທົດສອບຄວາມທົນທານຂອງ insulation ຄວາມຖືກຕ້ອງສູງ (Insulation Resistance Range: 0.1MΩ～200GΩ)

Function: insulation resistance test, DAR, PI, AC/DC voltage test

Power Supply: DC 1.5V LR14×6pcs

Rated Voltage: 50V / 250V / 500V / 1kV / 2.5kV

Insulation Resistance Range: 0.1MΩ～200GΩ

Voltage Range: AC/DC 0V ~ 750V

Shout Circuit Current: 2mA Max

Max Capacitive Load: 1uF

Dielectric Absorption Ratio Test (DAR): Yes

Polarization Index Test (PI): Yes

Shift: Turn the shift rotary knob to select the appropriate gear

Display Mode: 4 digital LCD display

Measurement indication: LED flicker and buzzer ring in measurement

LCD Size: 108mm×65mm

Meter Dimension: 212mm×175mm×76mm

Weight: 1230g

Working Temperature and Humidity: -10℃ ~ 40℃; below 80%RH

Storage Temperature and Humidity: -20℃～60℃; below 70%RH
