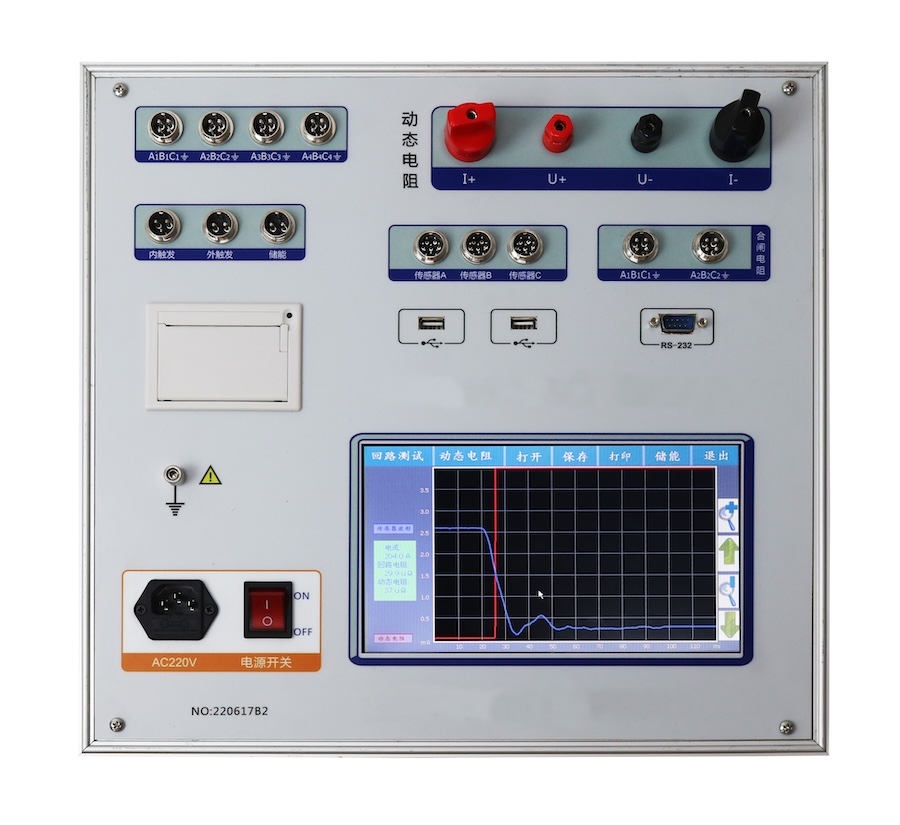

Wrindu RDGC-8C ປ່ຽນຊຸດທົດສອບລັກສະນະແບບໄດນາມິກ (Instrument power supply: AC220V ± 10%; 50 HZ plus or minus 10%)
1. Time measurement:
- 12 natural opening (closing) time
- Different periods in the opening (closing) phase
- The difference between different phases of switching (closing) (1 ~ 99ms)
- Closing (opening) bounce time (bounce number)
- Different testing range: 1ms ~ 99ms, resolution: 0.01ms;
- Internal trigger test range: 1ms ~ 999ms, resolution: 0.01ms,
1000ms ~ 9999ms, resolution: 0.1ms, 10000ms ~ 200000ms resolution: 1ms.
- External trigger test range: 0.01ms ~ 200s
- Accuracy within 1000ms: 0.05%±0.1ms
2. Closing resistance measurement:
- 6 natural opening (closing) time
- Different periods in the opening (closing) phase
- Switching (closing) phase is different
- Closing resistance input time, resistance value
3. Measuring range: 30 ~ 10KΩ, resolution 0.1Ω, accuracy: ≤1%±2 words
4. Dynamic resistance measurement: current output 200A, measurement range: 0-50mΩ, accuracy: ≤0.5%±0.5uΩ.
5. Speed measurement: just-minute (just-combined) speed
The average speed of a specified time period (travel or Angle)
6. Speed measuring range:
- 0.1mm sensor 0.01 ~ 15.00m/s
- 345° Angle sensor 0.01 ~ 20.00m/s
- Laser sensor: 0.01 ~ 15.00m/s (optional)
7. Stroke measurement: stroke of moving contact (stroke) (optional for 3-way stroke measurement)
- Contact stroke (opening distance)
- Over travel
- Over stroke or rebound stroke
8. Measuring range:
- Linear sensor: 50mm,
- Measuring range: 0-50mm,
- Resolution : 0.1mm.
- Rotary sensor: 345 dareus,
- Measuring range: 0-1000mm,
- Resolution :0.08 dareus.
- Acceleration sensor measurement range: 0-300mm,
- Resolution :0.1mm. (optional)
9. Coil current measurement range: maximum current 30A, resolution: 0.01A.
10. Coil resistance measurement range: 0 ~ 2000Ω, resolution: 0.01Ω.
11. Instrument power supply: AC220V ± 10%; 50 HZ plus or minus 10%.
12. DC power output :DC6 ~ 270V continuous adjustable, DC24V≤15A (short time), DC220V≤ 20A(short time).
