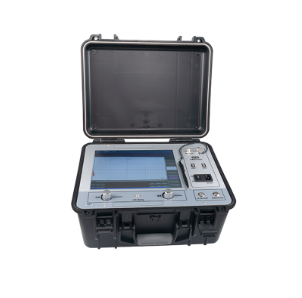

Wrindu RDCD-Ⅱ/502Z Cable Fault Pre-locator (60 MHz, 120 MHz, 240 MHz)

Data sampling rate: 60MHz, 120MHz, 240MHz;

Fully automatic and continuous sampling, never miss any discharge waveform;

Testing method: low-voltage pulse method, high-voltage flashover method;

Pulse amplitude: 400Vpp;

Pulse width: 0.1μs and 2μs;

Measuring distance: 64km;

Reading resolution: 0.1m;

The system test accuracy is less than 0.5m;

Product features:

1. 12.1-inch industrial-grade computer control, touch screen operation mode;

2. Windows operating system, super powerful cable management system, automatic generation of test reports;

3. With distance and speed measurement and other functions;

4. With massive storage function for the test waveform: the waveforms tested in the field can be conveniently stored in the instrument in a specified order for reference and observation at any time;

5. Built-in polymer lithium battery power supply: can work continuously for more than 4 hours after full charge. Fully meets field testing requirements. It can also be connected to an external AC power supply.
