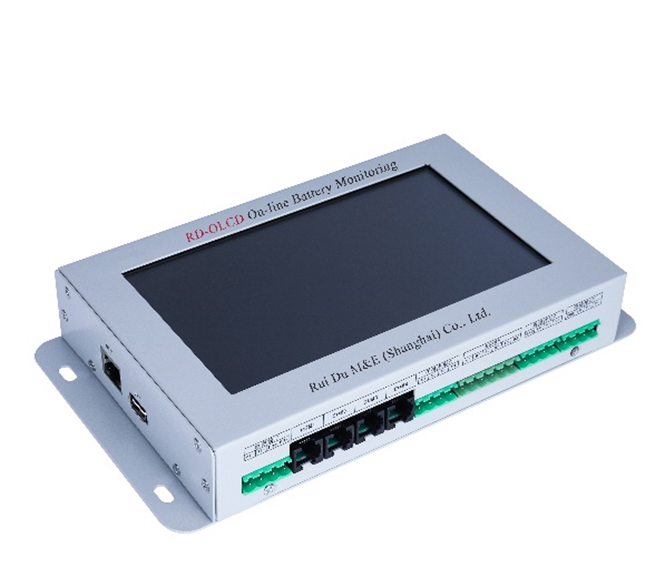

Wrindu RD-OLCD ລະບົບຕິດຕາມກວດກາຫມໍ້ໄຟອອນໄລນ໌ (2V battery 0~3.000V; 12V battery 8.000~16.500V)

Voltage monitoring range: 2V battery 0~3.000V; 12V battery 8.000~16.500V

Voltage monitoring accuracy: 0.05%, resolution: 1 mV

Internal resistance measurement range: 0~65535μΩ; accuracy: ≤2%; repeat measurement accuracy:  ± 1%

Range of current monitoring: 0 ~ ± 1000A (50A, 150A, 300A, 500A, 1000A is optional); accuracy: ≤1%; resolution: 0.1A

Temperature monitoring range: -55℃~+125℃;  accuracy: 0.5℃

Voltage equalization degree: <20 mV

SOC or SOH accuracy:＜10%

Data refresh speed: <1s

Input insulation resistance: ≥10MΩ, 600V

Size:

- Display host: 198×140×46 mm (excluding wiring terminals and fixtures)

- Data collector: 151×82×27 mm (excluding terminals and fixtures)

- Single module: 90.5×54.5×20.6 mm (excluding terminals)

Work environment: Temperature: -20℃~60℃; humidity: 10%~80% RH, no condensation
