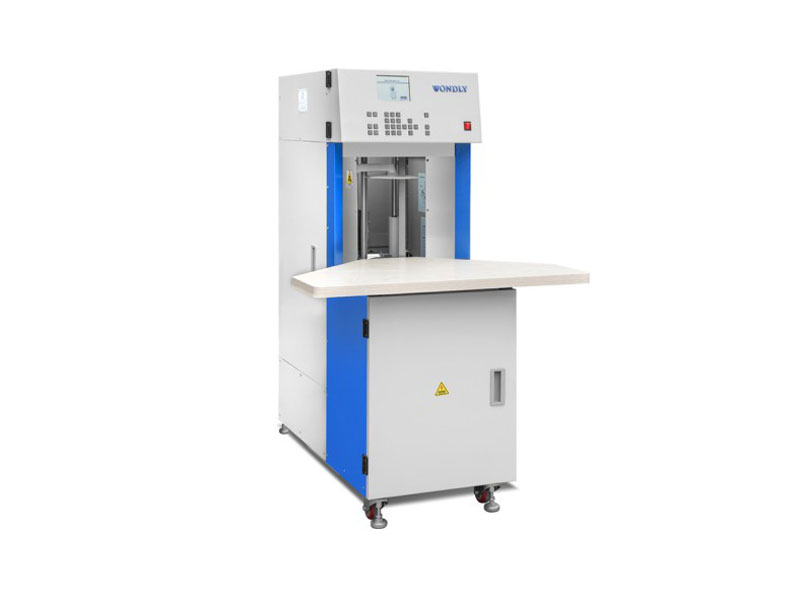

Wondly QZK670N ເຄື່ອງຕັດເຈ້ຍ Mini Office

Max. Cutting Width: 670 mm

Max. Cutting Length: 670 mm

Min. Cutting Length: 20 mm

Max. Cutting Height: 80 mm

Cutting Speed: 25 c.p.m

Overall Dimensions (L × W × H): 1540 × 1085 × 1360 mm

Hydraulic Motor Power: 2.2 kW

Pushing Motor Power: 0.55 kW

Power Supply: 220/380V, 50/60Hz

Weight: 565 kg

The casting adopts advanced resin sand molding, the internal structure is clear, and the row number reaches the international standard HT250, which more effectively increases the friction life of moving parts.

The display adopts Taiwan 7-inch color LCD display.

The operation interface of the computer adopts a humanized design, which makes it easy for operators to operate.

The paper feeding motor drives the servo system, and the one-time positioning accuracy is ±0.01mm.

The main low-pressure control part of the whole machine adopts imported Schneider electrical appliances.

The pressure of the hydraulic part is adjustable.

The frame adopts the internationally popular split structure, which effectively improves the cutting accuracy of the machine and facilitates the maintenance work of users.

The chrome-plated working platform saves the user's maintenance time and prolongs its service life.

It is equipped with a highly reliable 8-group grating protection to ensure the personal safety of the operator.

The high-precision and high-rigidity frame-type paper feeding mechanism and linear guide rail ensure the accuracy of paper feeding
