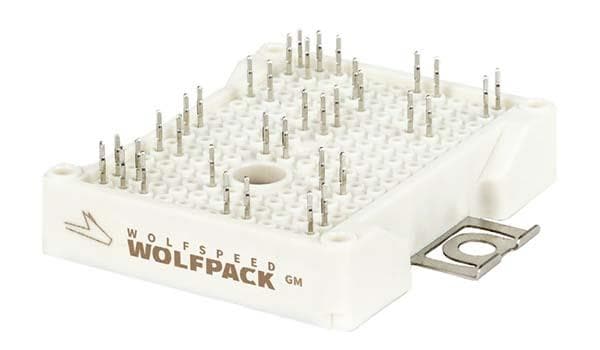

Wolfspeed CAB004M12GM4 ຮອບສະຕຣິດ SiC, ໂມດູນ, 4mohm, 1200V, 48 mm, GM4, ຮອບ-ສະຕຣິດ, ອຸດສາຫະກຳ

Configuration: Half-Bridge

Mounting Style: Press Fit

Vf - Forward Voltage: 5.4 V

Pd - Power Dissipation: 584 W

Vgs - Gate-Source Voltage: - 8 V, + 19 V

Id - Continuous Drain Current: 200 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 7.2 mOhms

Vds - Drain-Source Breakdown Voltage: 1.2 kV

Vgs th - Gate-Source Threshold Voltage: 1.8 V
