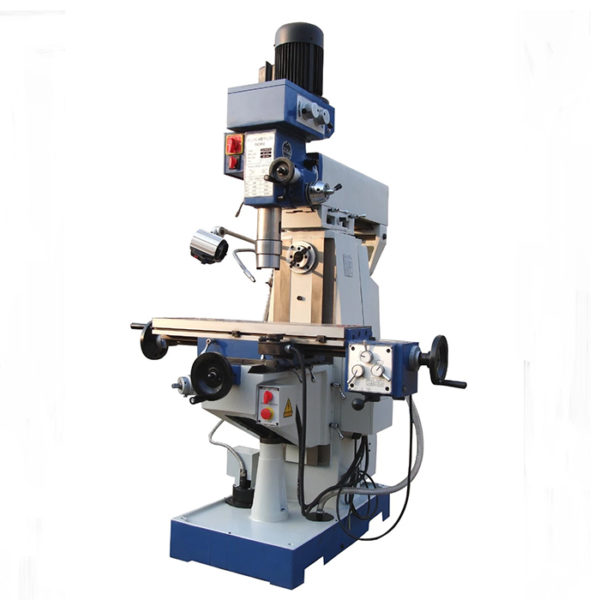

WMT CNC ZX7550CW ເຄື່ອງ Milling Universal

Max.drilling dia: Φ50mm

Max.horizontal milling dia.: Φ100

Max.vertical milling dia.: Φ25mm

Max.boring dia.: Φ120mm

Spindle taper: ISO30, R8, MT4

Spindle speeds range: V:115- 1750rpm(8)

H:60-1350(8)

Spindle travel: 120mm

Table size: 240×1000mm

Table travel: 400×230×350mm

Main motor power (V/H): V: 0.85/1.5, H: 2.2mm

Packing size: 1140×1120×2220mm

1140×1220×2220

N.W/G.W: 850kg/1000kgMax.drilling dia: Φ50mm
