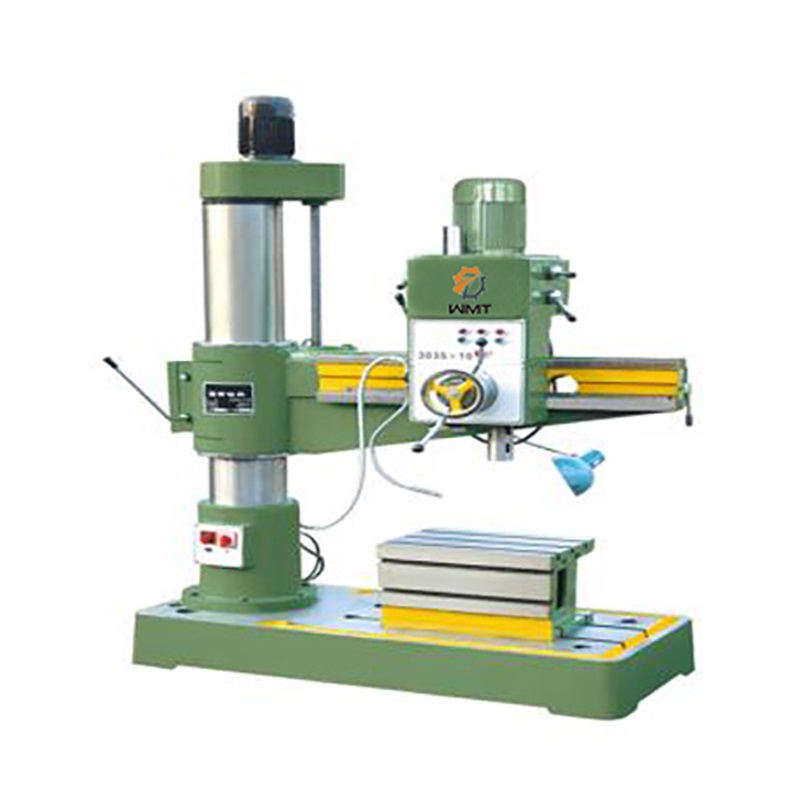

WMT CNC ZQ3035x10 ເຄື່ອງເຈາະ radial (2.2kW)

Max Drilling Diameter: steel 32 /iron 35mm

Spindle center to column: 360-900mm

Spindle box travel: 550mm

Spindle nose to table: 260–1000mm

Spindle travel: 200mm

Spindle taper: 4 Morse

Spindle speed range: 75/130/240/380/660/1200r/min

Spindle speeds series: 0.10/0.16/0.25

Radial rotation Angle: 360°

Main motor power: 2.2kW

Lifting Motor Power: 0.75kW

Machine weight: 1100kg

Machine overall size (L*W*H mm): 1550×720×2050mm
