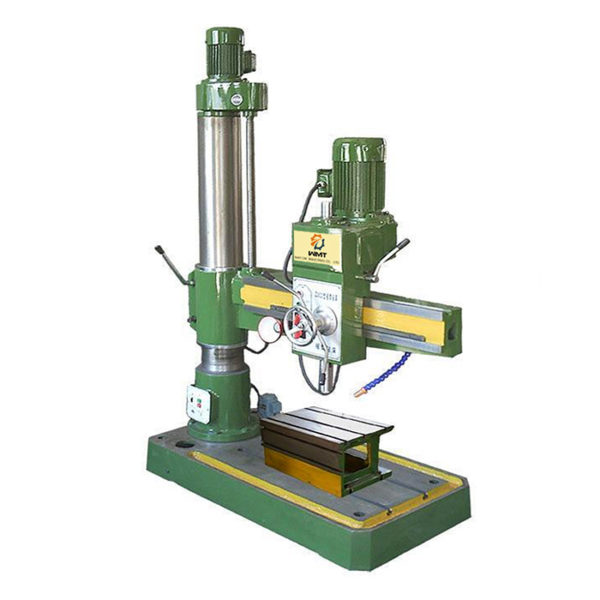

WMT CNC ZQ3032x10 ເຄື່ອງເຈາະ radial (1.5/2.2kW)

Max Drilling Diameter: steel 32 /iron 32mm

Column dia: 200mm

Spindle center to column: 200-910mm

spindle box travel: 710mm

Spindle nose to table: 330–1060mm

Arm lifting travel: 730mm

Spindle travel: 120mm

Spindle taper: 4 Morse

Spindle speed range: 108/162/262/398/665/1000r/min

Spindle speeds series: 0.10/0.16/0.25

Arm lifting speed: 1.21mm/r

Radial rotation Angle: 360°

Main motor power: 1.5/2.2kW

Lifting Motor Power: 0.55kW

Coolant motor power: 0.04kW

Machine weight: 1080kg

Machine overall size (L*W*H mm): 1400×660×2060mm
