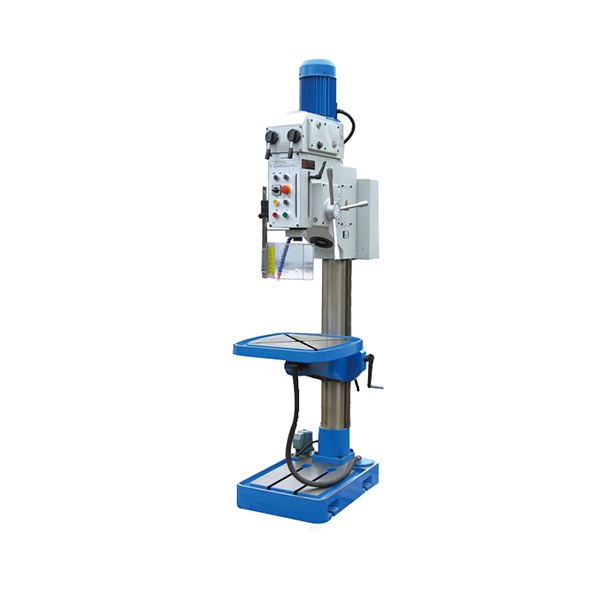

WMT CNC Z5040E ເຄື່ອງເຈາະແນວຕັ້ງ (0.85/1.5kW)

Max. drilling capacity: 40mm

Threading in steel & last iron: M20&M24

Spindle travel: 180mm

Spindle taper: M.T.#4

Spindle power feed: 2steps/0.1-0.2mm/rev

Spindle speed: 50-1450rpm

Width of T-slot: 18mm

Max. distance from spindle axis to surface of column: 350mm

Max. distance from spindle end to surface of table: 770mm

Max. distance from spindle end to surface of base: 1210MM

Diameter of column: 150mm

Table size: 560×560

Base size: 730×500

Motor power: 0.85/1.5kw

N.W/G.W: 465kg/615kg

Packing size(L×W×H): 2270×690×1100mm
