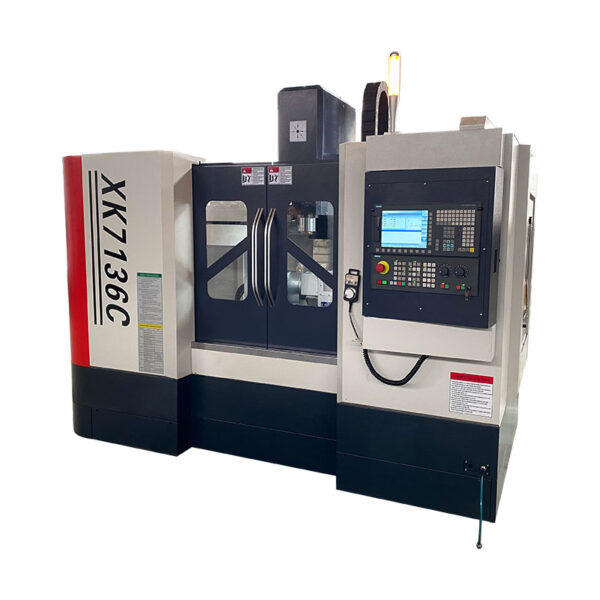

WMT CNC XK7136C CNC Milling Machine (5.5kw)

Worktable size (LxW): 1250x360mm

T-slot (NxWxD): 3/18/80mm

X axis travel: 900mm

Y axis travel: 350mm

Z axis travel: 500mm

Distance from spindle nose to worktable surface: 100-600mm

Distance from spindle center to column: 460mm

Rapid feed speed (X/Y/Z): 10/10/8m/min

Spindle taper: BT40

Spindle speed range: 8000rpm

Main motor power: 5.5kw

AC servo motor torque (X/Y/Z): 7.7/7.7/7.7N.m

Overall size (LxWxH): 2200x1850x2350mm

Net weight: 2400kg
