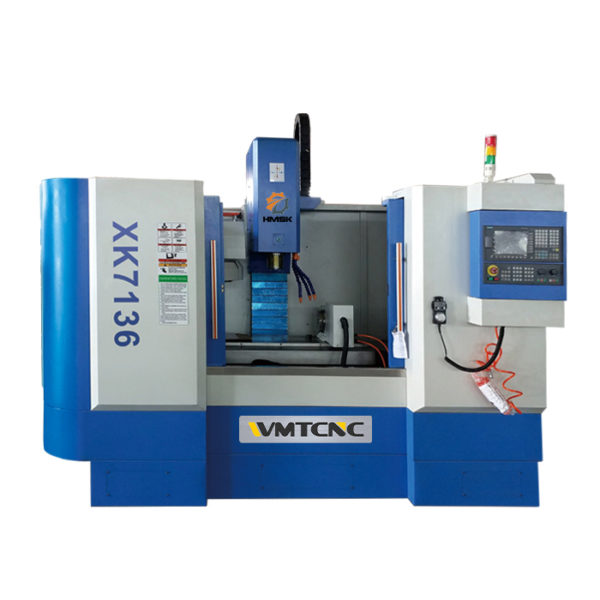

WMT CNC XK7136 CNC Milling Machine (5.5kw)

Worktable size (LxW): 1250x360mm

T-slot (NxWxD): 3x18x80mm

X/Y/Z axis travel: 900/350/500mm

Distance from spindle center to column: 460mm

Distance from spindle nose to worktable: 100-600mm

Spindle taper: BT40

Main motor power: 5.5kw

Max.spindle speed: 8000rpm

Rapid feed speed (X/Y/Z): 10/10/8 m/min

AC servo motor torque (X/Y/Z): 7.7/7.7/7.7N.m

Over size (LxWxH): 2220x1850x2350mm

Net weight: 2400kg
