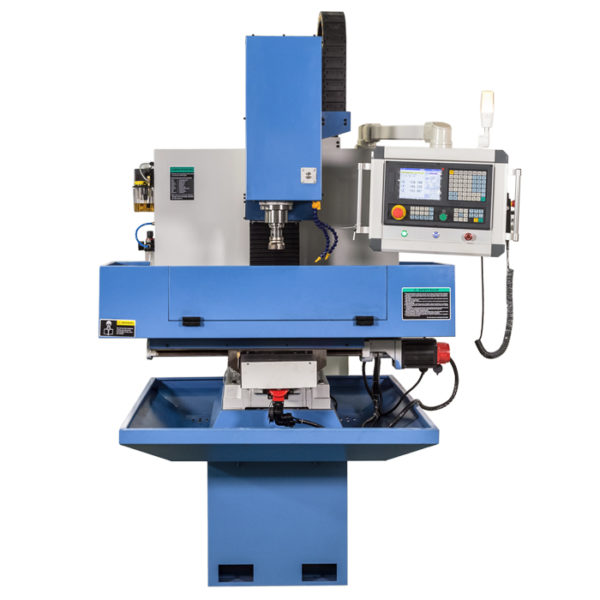

WMT CNC XK7124 CNC Milling Machine (3.7kw)

Worktable size (LxW): 800x240mm

T-slot (NxWxD): 3x16x60mm

X/Y/Z axis travel: 435/245/530mm

Distance from spindle center to column: 310mm

Distance from spindle nose to worktable: 105-635mm

Spindle taper: BT30

Main motor power: 3.7kw

Max.spindle speed: 6000rpm

Rapid feed speed (X/Y/Z): 10/10/10 m/min

AC servo motor torque (X/Y/Z): 4/4/6N.m

Over size (LxWxH): 1376x1296x1974mm

Net weight: 650kg
