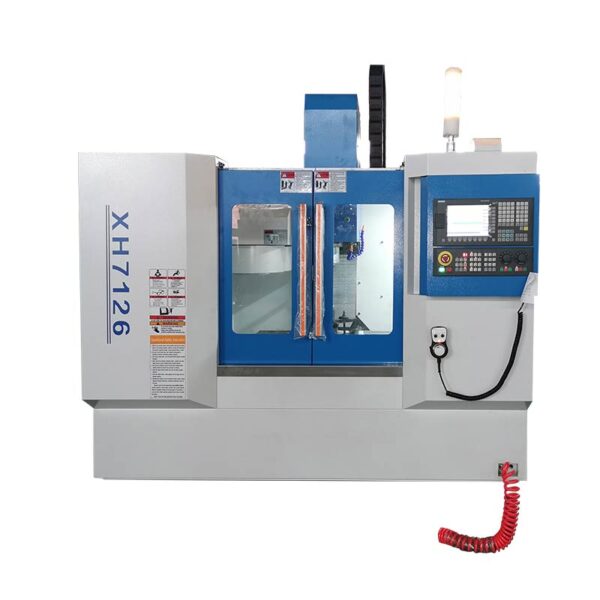

WMT CNC XH7126 CNC Milling Machine (3.7kw)

Worktable size (LxW): 800x260mm

T-slot (NxWxD): 3x14x80mm

X/Y/Z axis travel: 450/320/450mm

Distance from spindle center to column: 360mm

Distance from spindle nose to worktable: 90-470mm

Spindle taper: BT40

Main motor power: 3.7kw

Max.spindle speed: 6000rpm

Rapid feed speed (X/Y/Z): 15/15/15 m/min

AC servo motor torque (X/Y/Z): 6/6/7.7N.m

Over size (LxWxH): 2100x1800x1960mm

Net weight: 2400kg
