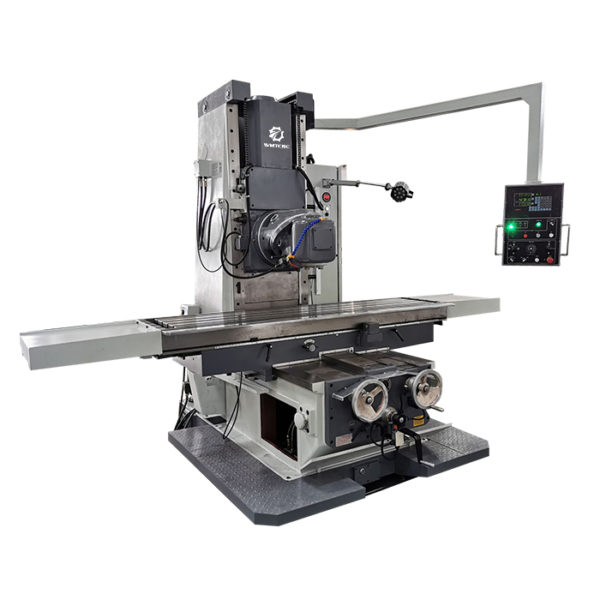

WMT CNC X715 ເຄື່ອງ Milling Universal (7.5kW)

Table size: 2100x500mm

T slot: 4

Size ( Width ): 20mm

Centre distance: 100mm

Max. load of Table: 2000

Longitudinal travel: 1500mm

Cross travel: 670mm

Vertical travel: 670mm

Spindle taper: ISO50 7:24

Spindle speed /step: (60HZ)40-1600rpm/12, (50HZ)35-1345rpm/12

Spindle axis to column surface: 610mm

Spindle nose to table surface: 0-670mm

Longitudinal/cross feed: 20-1800mm / min

Vertical: 10-900mm / min

Longitudinal/cross rapid speed: 3500mm / min

Rapid Traverse vertical: 1750mm / min

Main motor: 7.5kw

Feed motor: 2kw

Elevating motor for headstock: 2kw

Coolant motor: 550w

Package dimension: 2280x2280x2820mm

Overall dimension: 3300x2380x2750mm

N.W/G.W: 7300/8000kg
