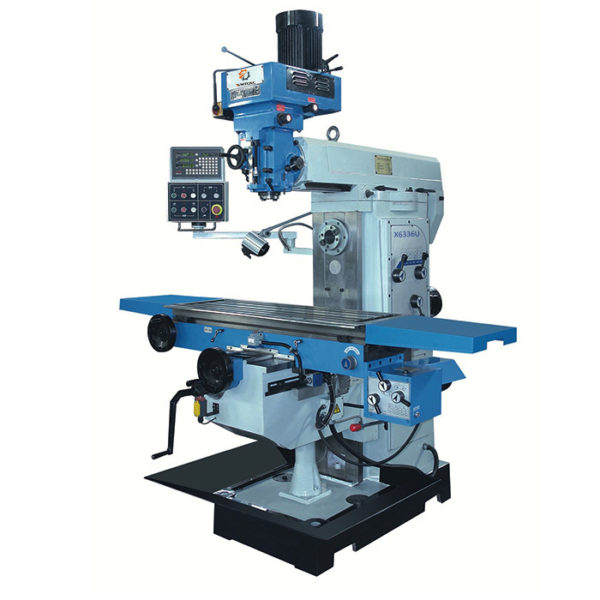

WMT CNC X6330U ເຄື່ອງ Milling Universal

Table size: 1370×305mm

T-slotes (No./Width/Pitch): 3/16/65mm

Table travel (X/Y/Z): 850×380×380mm

Spindle taper:vertical/horizontal: R8/NT40(V),NT40(H)

Ditance between horizontal nose and table surface: 0-380mm

Ditance between spindle axis and ram surface: 210mm

Spindle speed range: 80-4200rmp(variable)

66-4540( vertical,16 steps)

40-1300rpm( horizontal, 12 steps)

Arm travel: 400mm

Main motor power: 3KW(vertical), 4KW(horizontal)

Machine overall size (L*W*H): 1700×1600×2250mm

Machine weight: 1450kg
