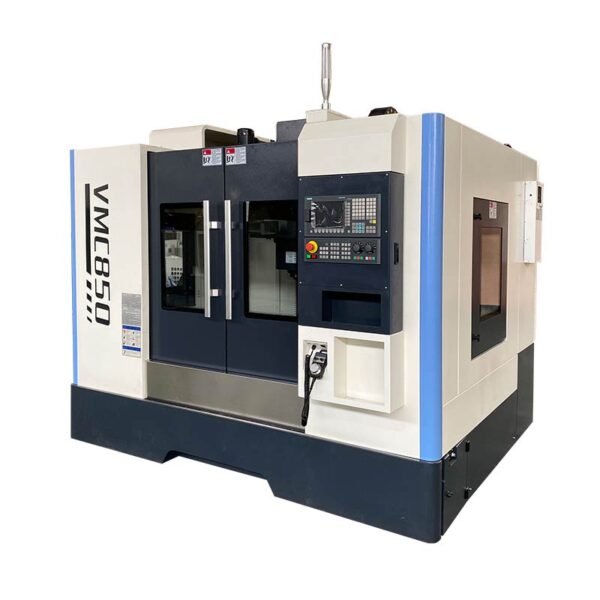

WMT CNC VMC850 ສູນເຄື່ອງຈັກແນວຕັ້ງ

X-axis travel: 800mm

Y-axis travel: 500mm

Z-axis travel: 500mm

Spindle nose to table surface: 150-650mm

Spindle center to column surface: 550mm

Table size: 1000×500mm

Max.loading: 500kg

T-slot width: 18mm

T-slot quantity: 5

Spindle taper: BT40

Spindle speed: 8000rpm

Spindle motor: 7.5kw

Max.tool dia: φ80/φ150mm

Max.tool length: 200mm

Max.tool weight: 8kg

X, Y axis rapid feed: 24000mm

Z axis rapid feed: 20000mm

Cutting feed: 1-10000mm/min

Position accuracy: ±0.01mm

Capacity: 15KVA/ 200L

Cooling pump power: 120W

Cooling pump flow: 50L/min

Using air pressure: 0.6MPa

Dimensions: 2750×2300×2300mm

Net weight: 5200Kg
