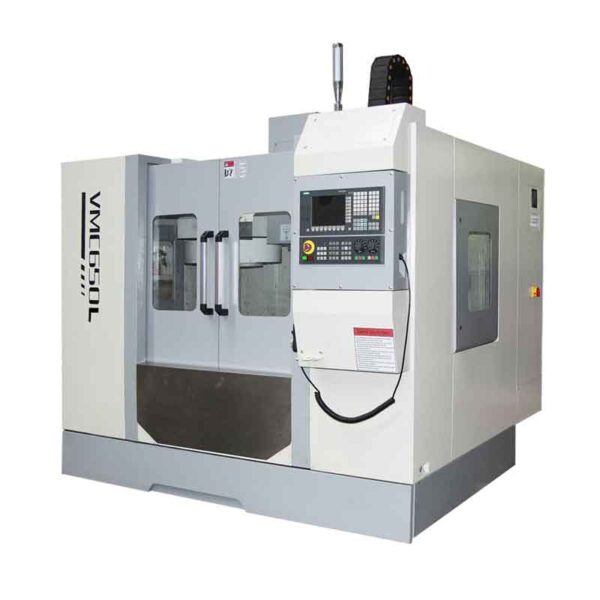

WMT CNC VMC650L ສູນເຄື່ອງແນວຕັ້ງ

Table size: 900*400mm

Max. table load: 500KG

T slot qty-width*distance: 3-18*125

spindle speed: 8000rpm

Spindle nose to table surface: 120-620mm

Spindle center to column surface: 500mm

Spindle taper: BT40

Main motor power: 5.5/7.5 kw

Three-axis servo motor power: 2.0/2.0/3.0 kw

X axis travel: 650mm

Y axis travel: 450mm

Z axis travel: 500mm

X/Y/Z axis rapid feed: 20/20/18 m/min

Tool changer type: Umbrella type

Tools capacity: 16

Max. tool length: 250mm

Max. Tool diameter: φ100

Max.tool(kinfe) weight: 7kg

Positioning accuracy: ±0.007

Repeat positioning accuracy: ±0.005

Net Weight: 3800kg

Overall Dimension: 2300*2200*2400mm
