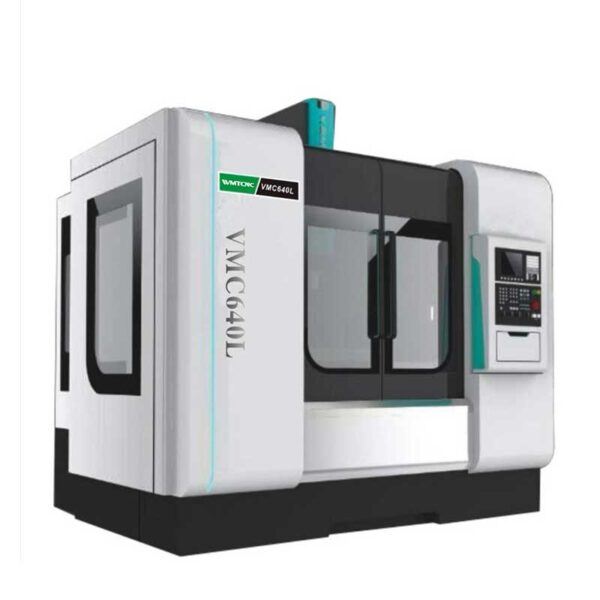

WMT CNC VMC640L ສູນເຄື່ອງແນວຕັ້ງ

Worktable size (LxW): 900x400mm

T-slot (NxWxD): 3x18x100mm

X/Y/Z axis travel: 640/400/500mm

Distance from spindle center to column: 476mm

Distance from spindle nose to worktable surface: 120-620mm

Spindle taper: BT40

Spindle power: 5.5kw

Max.spindle speed: 8000rpm

Max.feed speed: 15m/min

Rapid feed speed (X/Y/Z): 30/30/24m/min

X/Y/Z axis ball screw: 3212/3212/4012

Max.length of tool: 240mm

Tool change time(T-T):2.5s

Positioning accuracy (X/Y/Z): ±0.010mm

Re-positioning accuracy (X/Y/Z): ±0.005mm

LxWxH: 2200x2100x2550mm

Max.loading of worktable: 350kgs

Machine weight: 4100kg
