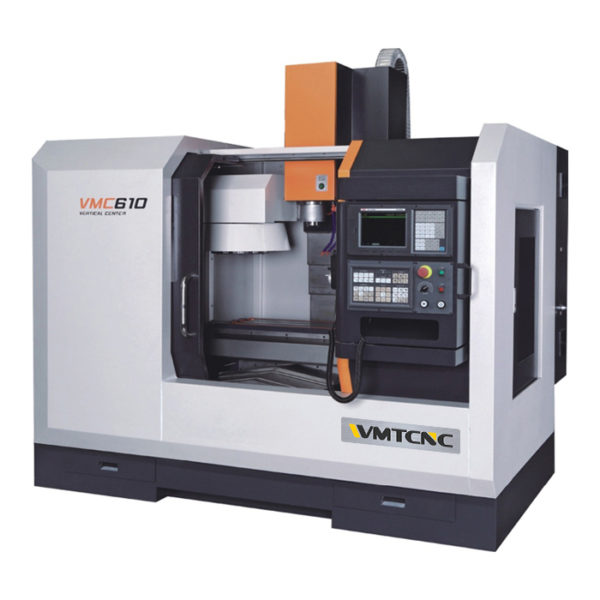

WMT CNC VMC610 ສູນເຄື່ອງແນວຕັ້ງ

Worktable size (LxW): 1000x320mm

T-slot (NxWxD): 3x18x80mm

X/Y/Z axis travel: 610/330/406mm

Distance from spindle center to column: 360mm

Distance from spindle end to worktable: 150-556mm

Spindle taper: BT40

Spindle power: 5.5kw

Max.spindle speed: 6000rpm

Max.feed speed: 4m/min

Rapid feed speed (X/Y/Z): 10/10/8m/min

Tool change time(T-T): 2.5s

Positioning accuracy (X/Y/Z): ±0.015mm

Re-positioning accuracy (X/Y/Z): ±0.008mm

LxWxH: 2260x1700x2200mm

Max.loading of worktable: 400kgs

Machine weight: 3000kg
