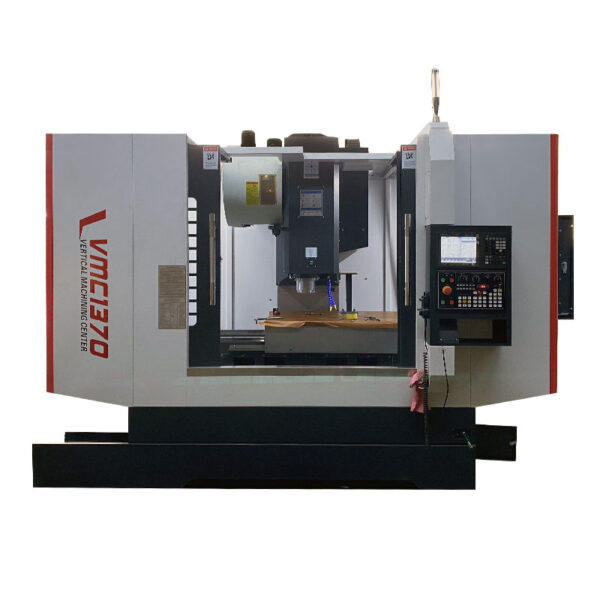

WMT CNC VMC1370 ສູນເຄື່ອງແນວຕັ້ງ

Worktable size (LxW): 1400×700mm

T-slot (NxWx D): 5x18x110mm

X/Y/Z axis travel: 1300/700/700mm

Distance from spindle center to column: 750mm

Distance from spindle nose to worktable surface: 110-810mm

Spindle taper: BT40

Spindle power: 11kw

Max.spindle speed: 8000rpm

Max.feed speed: 10m/min

Rapid feed speed（X/Y/Z): 24/24/20m/min

X/Y/Z axis ball screw: 4512

Max.length of tool: 300mm

Tool change time(T-T):2.5s

Positioning accuracy (X/Y/Z): ±0.008m

Re-positioning accuracy (X/Y/Z): ±0.003mm

LxWxH: 3200×2540×2600mm

Max.loading of worktable: 1000kgs

Machine weight: 8200kg
