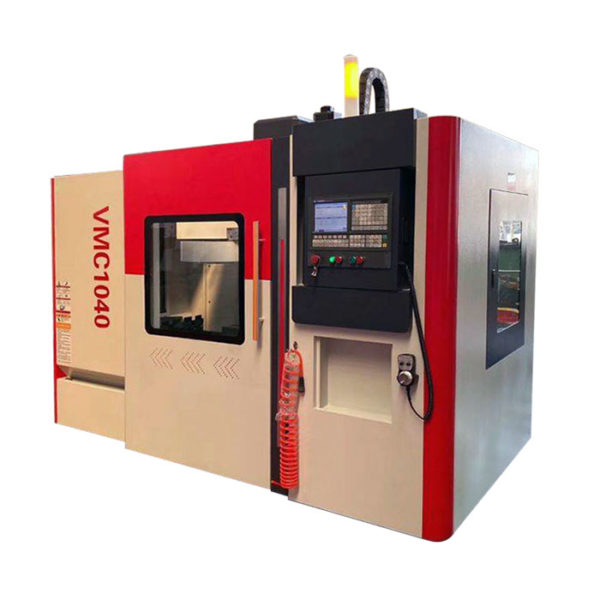

WMT CNC VMC1040 ສູນເຄື່ອງແນວຕັ້ງ

Worktable size (LxW): 1000x400mm

T-slot (NxWxD): 3x18x115mm

X/Y/Z axis travel: 1000/400/500mm

Distance from spindle center to column: 485mm

Distance from spindle nose to worktable: 125-625mm

Spindle taper: BT40

Spindle power: 5.5kw

Max.spindle speed: 8000rpm

Max.feed speed: 1-5000mm/min

Rapid feed speed (X/Y/Z): 32/32/24m/min

X/Y/Z axis ball screw: R4016

Positioning accuracy (X/Y/Z): ±0.008mm

Re-positioning accuracy (X/Y/Z): ±0.005mm

LxWxH: 3000×2200×2500mm

Max.loading of worktable: 300kgs

Machine weight: 3500kg
