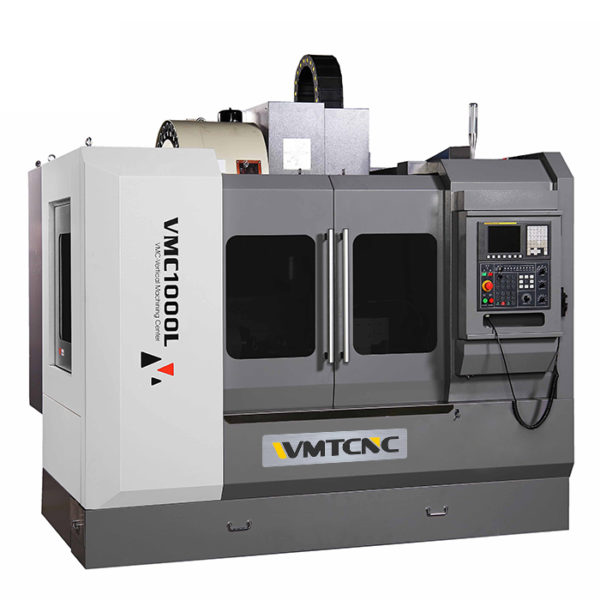

WMT CNC VMC1000L ສູນເຄື່ອງແນວຕັ້ງ

Worktable size (LxW): 1200x500mm

T-slot (NxWxD): 5x18x100mm

X/Y/Z axis travel: 1000/500/600mm

Distance from spindle center to column: 572mm

Distance from spindle nose to worktable surface: 120-720mm

Spindle taper: BT40

Spindle power: 7.5/11kw

Max.spindle speed: 8000rpm

Max.feed speed: 12m/min

Rapid feed speed (X/Y/Z): 32/32/30m/min

X/Y/Z axis ball screw: 4016

Tool change time(T-T): 2.5s

Positioning accuracy (X/Y/Z): ±0.010mm

Re-positioning accuracy (X/Y/Z): ±0.005mm

LxWxH: 3080x2320x2780mm

Max.loading of worktable: 600kgs

Machine weight: 5600kg
