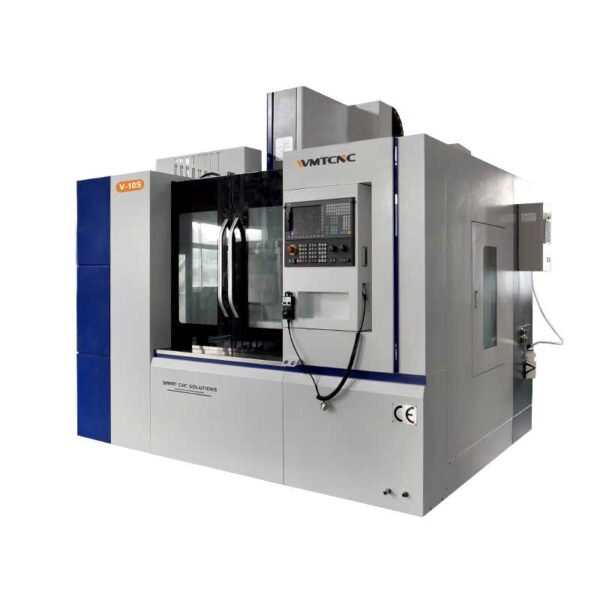

WMT CNC V10S ສູນເຄື່ອງແນວຕັ້ງ (12000RPM)

Worktable size: 1200×550mm

T-slot: 18×5×90mm

Max. loading of worktable: 600kg

Spindle center to column distance: 580mm

Spindle nose to table distance: 130-680mm

Rail type: Linear Guideway

Spindle taper: BT40

Spindle speed: 12000rpm

Main motor power: 7.5kw

X axis travel: 1000mm

Y axis travel: 550mm

Z axis travel: 550mm

X/Y/Z rapid traverse: 48000mm/min

Positioning accuracy: ±0.006mm

Re-positioning accuracy: ±0.003mm

Air pressure: 0.5-0.8mpa

Coolant: air conditioning

Overall dimension(LxWxH): 3150×2800×3150mm

Weight: 6000kg
