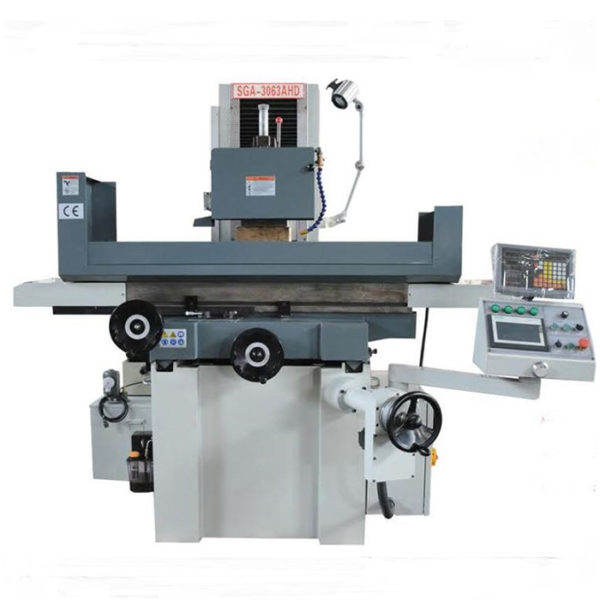

WMT CNC SGA3063 ເຄື່ອງຂັດພື້ນຜິວ (4/5.5kW)

Table size(WxL): 305x635mm

Max.longitudinal travel: 765mm

Cross travel: 340mm

Max.distance from spindle center to table: 580mm

Magnetic chuck size: 300x600mm

Speed of table longitudinal movement: 7-23m/min

Table transerve movement/ Auto feed: 0.1-8mm/min

Table transerve movement/ Repid speed: 990mm/min

Table transerve movement/ Feed of handlwheel: 0.02mm/div.

Wheelhand vertical movement/ Auto feed: -(H/R mode)0.005/0.01/0.02/0.03/0.04/0.05(only for D model)mm/stroke

Wheelhand vertical movement/Rapid speed: -(H mode)610mm/min(only for R model)480mm/min(only for D model)

Wheelhand vertical movement/ Feed of handlwheel: 0.005mm/div.

Grinding wheel Speed 50HZ: 1450rmp

Grinding wheel Speed 60HZ: 1750rmp

Grinding wheel (ODxWxID) Size:350x40x175mm

Spindle motor: 4/5.5kw

Hydranlic Motor: 2.2kw

Cooling pump motor: 0.09kw

Elevating motor: -(Hmode)0.25(Rmode)0.5(D mode servo motor)kw

Cross feed Motor: 0.04kw

Max.loading capacity of table(include magnetic chuck): 270kg

Total rated Power: 7.5/9kw

Height of machine: 1890mm

Floor space: 2900x2200mm

Gross weight: 2800kg

Packing dimensions(LxWxH): 2315x2220x2230mm
