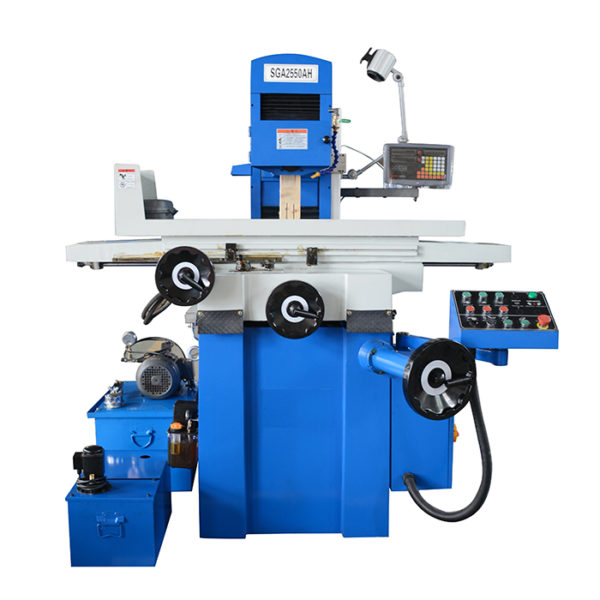

WMT CNC SGA2550 ເຄື່ອງຂັດພື້ນຜິວ (2.2kW)

Table size(WxL): 254x508mm

Max.longitudinal travel: 560mm

Cross travel: 275mm

Max.distance from spindle center to table: 450mm

Magnetic chuck size: 250x500mm

Speed of table longitudinal movement: 7-23m/min

Table transerve movement/ Auto feed: 0.1-8mm/min

Table transerve movement/ Repid speed: 990mm/min

Table transerve movement/ Feed of handlwheel: 0.02mm/div.

Wheelhand vertical movement/ Auto feed: -(H/R mode)0.005/0.01/0.02/0.03/0.04/0.05(only for D model)mm/stroke

Wheelhand vertical movement/Rapid speed: -(H mode)610mm/min(only for R model)480mm/min(only for D model)

Wheelhand vertical movement/ Feed of hand-wheel: 0.005mm/div.

Grinding wheel Speed 50HZ: 2850rmp

Grinding wheel Speed 60HZ: 3450rmp

Grinding wheel (ODxWxID) Size: 200x20x31.75mm

Spindle motor: 2.2kw

Hydraulic Motor: 0.75kw

Cooling pump motor: 0.04kw

Elevating motor: -(Hmode)0.25(Rmode)0.5(D mode servo motor)kw

Crossfeed Motor: 0.04kw

Max.loading capacity of table(include magnetic chuck): 180kg

Total rated Power: 3.7kw

Height of machine: 1890mm

Floor space: 2mm/rev

Gross weight: 1640kg

Packing dimensions(LxWxH): 1970x1915x2220mm
