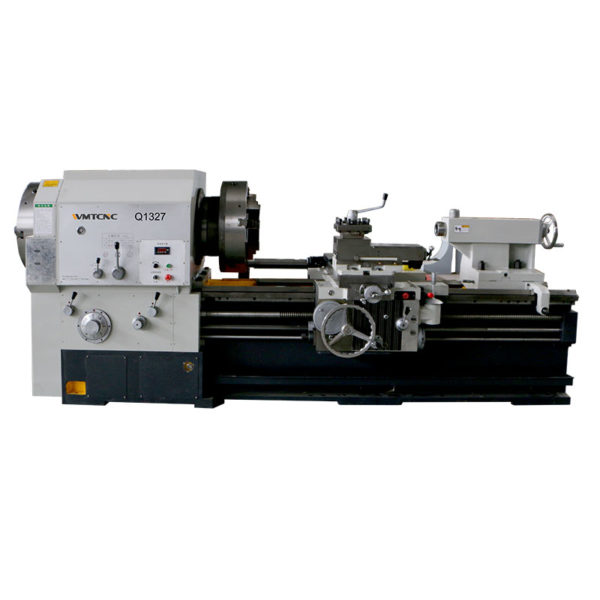

WMT CNC Q1327 ເຄື່ອງກຶງທໍ່ທໍ່ (15kW)

Max dia.swing over bed: 800mm

Max dia.swing over cross slide: 480mm

Max.length of work-piece: 1500mm

Width of bed: 750mm

Spindle bore: 280mm

Power of spindle motor: 15kW

Spindle speed: 20-300r/min VF2. steps

Z axis feed grade/range: 40/0.1-3mm/r

X axis feed grade/range: 40/0.05-1.5mm/r

Carriage rapid traverse speed: 3740mm/min

Cross slide rapid traverse speed: 1870mm/min

Metric thread grade/range: 52/1-224mm

Inch thread grade/range: 27/28-1T.P.I

Traverse of cross slide: 520mm

Max. Traverse of turret: 300mm

Tailstock quill travel: 300mm

Tailstock quill Dia./taper: Φ140/（MT5#）mm

Chuck: 4-jaw manual

Overall dimensions(L*W*H): 5000x2100x1600

Net weight: 4.2T
