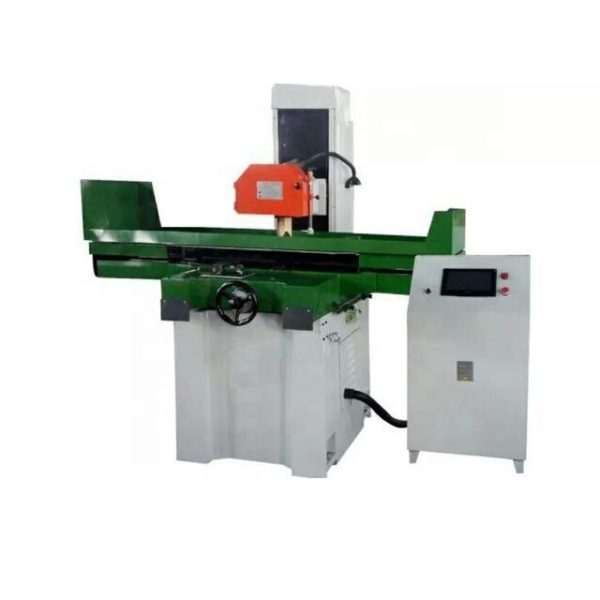

Worktable size: 700x300mm
Max. travel of table: 760x370mm
Table max. cutting area: 760x370mm
T-slot (number width): 1x14mm
Distance from table to spindle center: 540mm
Wheel size (dia width bore): 300x30x75mm
Spindle speed: 1440r/m
Table longitudinal (left and right) speed: 5-25m/min
Worktable cross continuous speed: 150mm/min
Worktable cross intermittent speed: 0-5mm/min
Worktable cross handwheel-stroke per revolution: 4mm
Worktable cross handwheel-stroke per grid: 0.02mm
Worktable vertical handwheel-stroke per revolution: 2mm
Worktable vertical handwheel-stroke per grid: 0.01mm
Spindle motor: 4kw
Cooling motor: 0.4kw
Hydraulic motor: 1.5kw
Working pressure: 3mpa
Oil tank capacity: 80L
Max. flow capacity: 18L/min
The mechanical surface of the base of parallelism: 300/0.004mm
Surface roughness: Ra0.32um
N.W: 2100kgs
G.W: 2350kgs
Machine size: 2560x2430x1920mm
