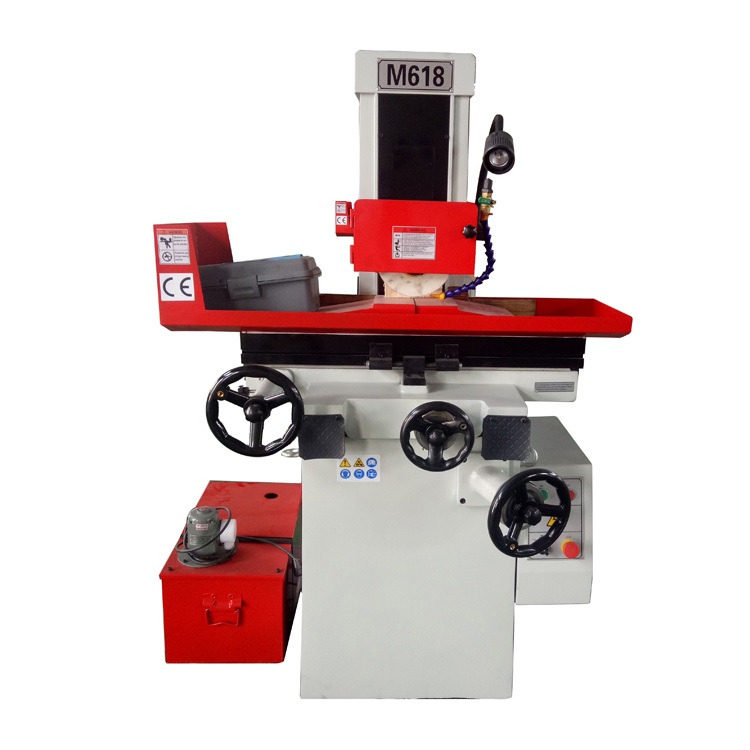

WMT CNC M618 ເຄື່ອງຂັດພື້ນຜິວ (1.1kW)

Table maximum cutting area (LxWxH): 500x190x335mm

Working table movement:

Max. Grinding Length: 500mm

Max. Grinding width: 190mm

Distance From Table Surface To Spindle Center: 335mm

Slideway: V-type rail with Steel-ball

Maximum workload: 200kg

Table size: 460×180mm

Number of T -Slot: 14×1mmxn

Front and rear wheel feed: 0.02mm/Graduation, 2.5mm/revolution

On the hand wheel feed: 0.01mm/Graduation, 1.25mm/revolution

Wheel Size(dia×width×bore): 180×13×31.75mm

Spindle speed: 50Hz: 2850rpm

Variable frequency motor (matching): 0-6000rpm

Spindle motor: 1.1kW

Cooling pump: 0.4kW

Packing Size (LxWxH): 1240x1080x1680mm
