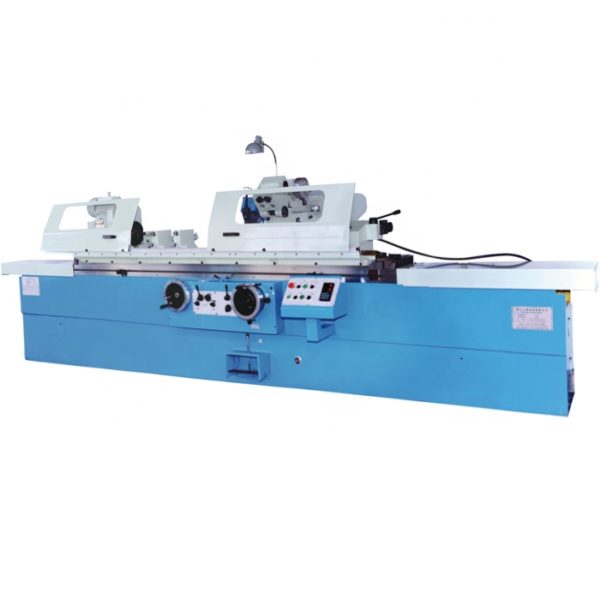

WMT CNC M1432B ເຄື່ອງຕັດຮູບຊົງກະບອກ (9kW)

Grinding length(O.D/I.D): 1000/1500/2000/3000mm,125mm

Grinding dia.(O.D/I.D): φ8～φ320/φ30～φ100mm

Center height: 180mm

Max.worktable traverse: 1100/1600/2100/3100mm

Max.workpiece weight: 150kgs

Worktable speed: 0.1～4m/min

Max.wheel peripheral speed: 35m/s

External wheel size: φ400x50xφ203/φ500x50xφ203mm

Wheelhead displacement per div.of handwheel (coarse/fine): 0.01/0.0025

Total motor power: 9kw

Machine overall dimension（LxWxH）:

3605x1810x1515mm

4605x1810x1515mm

5605x1810x1515mm

7605x1810x1515mm

Machine weight: 3700/4300/6600/8600kg
