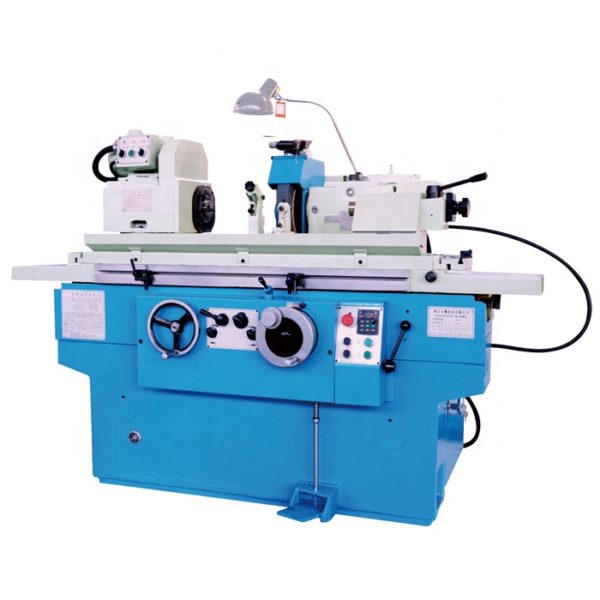

WMT CNC M1420H/FX800 ເຄື່ອງຕັດຮູບຊົງກະບອກ (5.625kW)

External grinding diameters: φ8～200mm

Internal grinding diameters: φ13～100mm

Center height: 135mm

Headstock spindle rotation speed: 50HZ:25～380rpm (stepless)

Max. worktable traverse: 950mm

Hydraulic travel speed: 0.1～4m/min

Max.workpiece weight: 50kgs

Grinding length External/Internal: 800/125mm

Swivel range of worktable: -3°～+7°

Max.wheel peripheral speed: 38m/s

External wheel size: Max.φ400x50xφ203mm, Minφ280x50xφ203mm

Internal wheel spindle rotating-speed: 20000r/min

Headstock and tailstock center: MT4

Total motor power: 5.625kW

Machine overall dimension（LxWxH）: 3000x1600x1500mm

Machine weight: 3000kg
