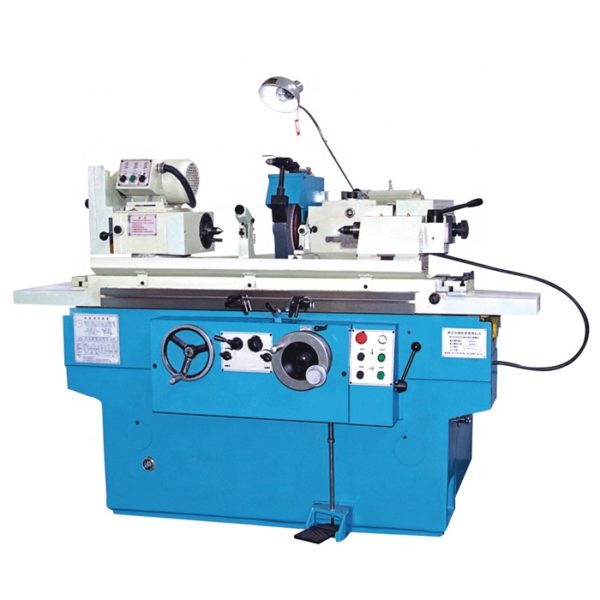

WMT CNC M1320H×800 ເຄື່ອງຕັດຮູບຊົງກະບອກ (5.625kW)

External grinding diameters: Φ8 ~200mm

Center height: 135mm

Max.travel of table: 950mm

Hydraulic traverse speeds: 0.1~4m/min

Max.workpiece weight: 50kg

Grinding length External: 800mm

Swivel range of worktable: ﹣3~+7°

Max peripheral speed of grinding wheel: 38m/s

Externalwheef size: MinΦ280×50×Φ203

Workhead and tailstock center: NO.4

Machine motor power: 5.625kW

Overall dimensions(L×W×H):3000×1600×1500

Machine weight: 3000kg
