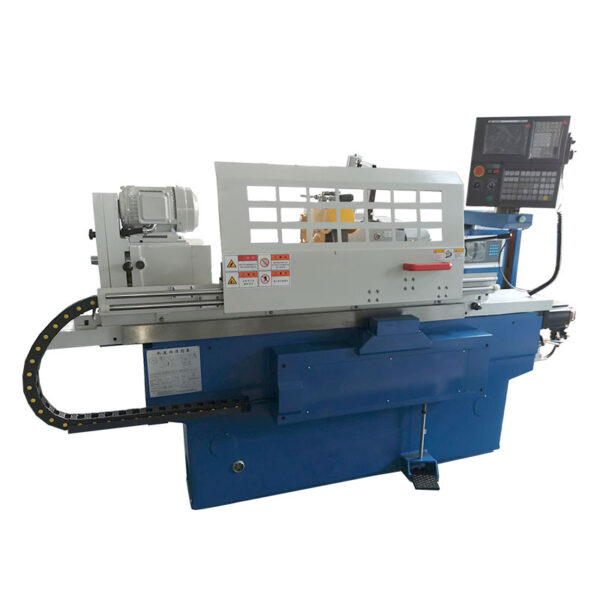

WMT CNC M1320H×500 ເຄື່ອງຕັດຮູບຊົງກະບອກ (5.625kW)

External grinding diameters: Φ8 ~200mm

Center height: 135mm

Max.travel of table: 650mm

Hydraulic traverse speeds: 0.1~4m/min

Max.workpiece weight: 50kg

Grinding length External: 500mm

Swivel range of worktable: ﹣5~+9°

Max peripheral speed of grinding wheel: 38m/s

Externalwheef size: MaxΦ400×50×Φ203mm

Workhead and tailstock center: NO.4

Machine motor power: 5.625kW

Overall dimensions(L×W×H): 2500×1600×1500mm

Machine weight: 2500kg
