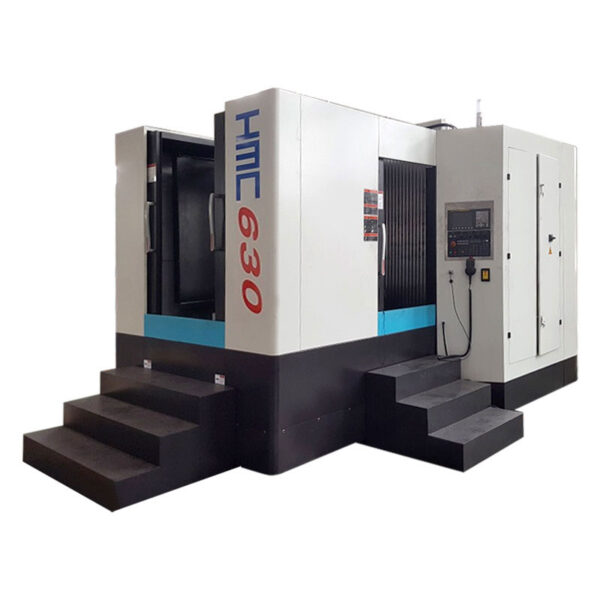

WMT CNC HMC630D ສູນເຄື່ອງຈັກແນວນອນ (15/18.5KW)

Table size: 630x630mm

Table numubers: 1pc

Max.load of table: 1200kg

T slot: 5-18-125

Table indexing: 1°

Table Max. speed: 16.7rpm

Table travel (left/right) X: 1000mm

Headstock travel (up/down) Y: 800mm

Table travel (Front/back) Z: 800mm

Max. workpiece Dia.: 1000mm

Distance from spindle axis to table surface: 100-900mm

Distance from table center to spindle nose: 150-950mm

Spindle taper: BT50

Spindle speed: 3500rpm

Max.spindle torque: 235N.M

Main motor power: 15/18.5KW

Max.drilling Dia.: 50mm

Cutting feed: 1-12m/min

Standard arm type: 24nos

Max. tool Dia.: 125mm

Max.tool length: 400mm

Max. tool weight: 25kg

Machine overal dimensions: 4600x3300x3100mm

Machine weight: 14000kg
